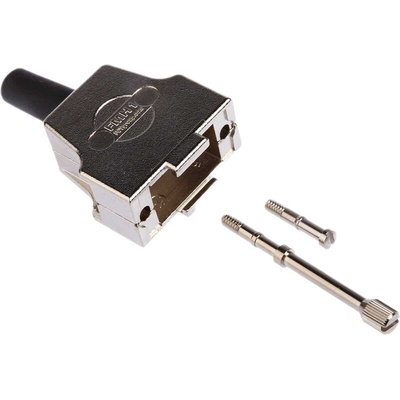

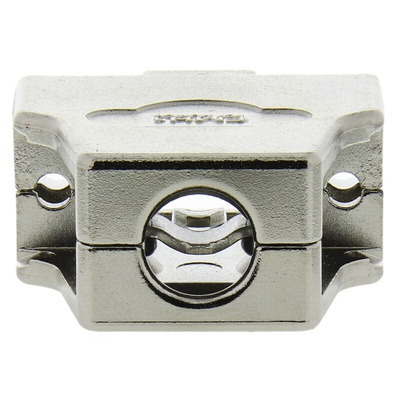

FMH1-4381 / 1731110365, FCT from Molex FMH Series Die Cast Zinc D Sub Backshell, 9 Way, Strain Relief

Nickel-plated

Solid metal hoods with short and long jack screws and anti-kink sleeving
The two halves of the hood lock into one another
Jack screws can be retrofitted
Option of fitting hoods universally using locking mechanisms (100–7490)
Ø 6.5 cable — 14 mm for flat cable and round-flat cable

FCT from Molex Die Cast Zinc D-Sub Backshell, 9 Way, Straight Body Orientation - FMH Series - FMH1-4381 / 1731110365

Use this FCT from Molex backshell to provide reliable protection to your cable connectors. The strudy unit has a die-cast zinc housing that's robust and can withstand mechanical impact, so it's a practical choice for heavy-duty industrial settings where rough handling and vibration are expected. Nickel plating provides protection from rust and wear to ensure long-term use. You can use this backshell to shield your cables from electromagnetic and radio frequency interference and give you clear and noiseless signal transmission.

• Rubber bushing for reliable vibration resistance
• Wide operating temperature range of -35°C to +100°C for use in challenging environments
• Maximum torque of 40Ncm for a secure lock on the D-sub connector
• Strain relief to prevent cables from twisting at angles that can damage them
• Cable clamp screws are tightened simple with a screwdriver and prevent accidental disconnection

Applications

• Military devices
• Aerospace industry
• Mining equipment

What size of cables can I use with this backshell?

This backshell accommodates cables with diameters from 6.5 to 14mm, so it's a versatile option.

D Sub Connector Back Shell Datasheet
