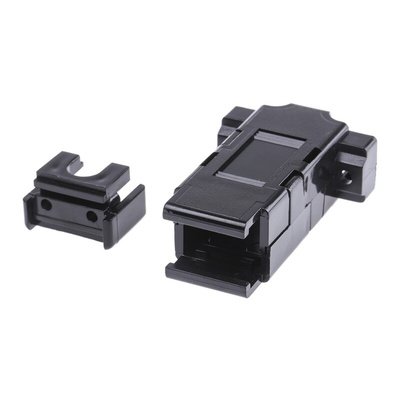

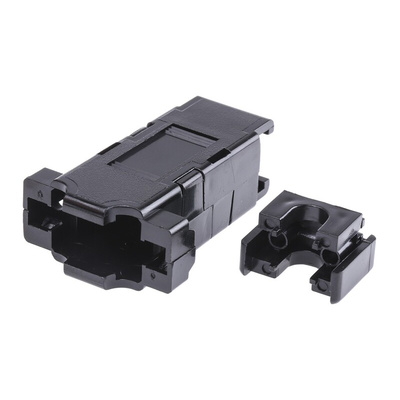

F1069-1E / 1731140263, FCT from Molex F1069 Series ABS D Sub Backshell, 9 Way

Thermoplastic Adapter Housing

The special sub-D hoods can be used both as gender changers and as normal, very large sub-D hoods. The halves of the housing can be easily clicked together. They are supplied with strain relief and 4-40 UNC screws.

FCT from Molex D-Sub Backshell, E Shell Size, 6.9mm Cable Diameter - F1069 Series - F1069-1E / 1731140263

Protect your D-sub connectors with this FCT from Molex backshell. It accommodates nine contacts and can be used with many common D-sub units. As it accepts connectors through both its front and back, this is a versatile option for use either as a hood or as a gender changer. It comes complete with fixing screws to make a reliable and vibration-proof connection.

• Fits cable diameters of up to 6.9mm to protect small wired connections
• ABS housing is resistant to impact and wear
• Wide operating temperature range between -35°C and +95°C for use in harsh settings

Applications

• Recording devices
• Media systems
• Power supplies
• Telecommunications equipment

Does this D-sub backshell provide strain relief?

Yes, the backshell comes with a cable clamp that protects your connections against strain and potentially damaging bending.

D Sub Connector Back Shell Datasheet
