3003347, Phoenix Contact UK 2.5 N Series Grey DIN Rail Terminal Block, 0.2 → 2.5mm², Single-Level, Screw Termination, ATEX

Phoenix Contact UK Series Terminal Blocks

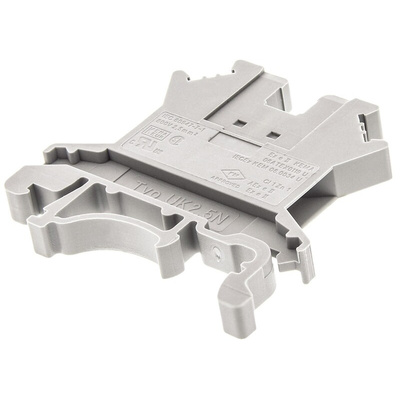

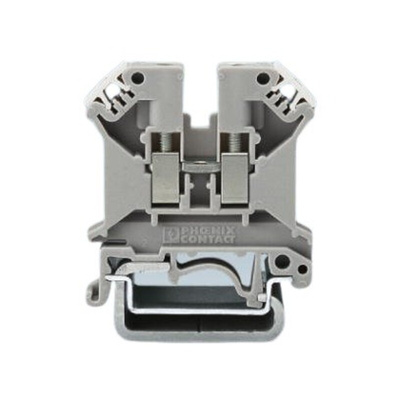

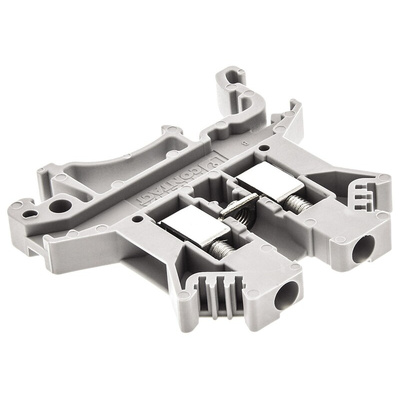

Phoenix Contact Feed-Through Terminal Block, 24A, 800V AC/DC - UK 2.5 N - 3003347

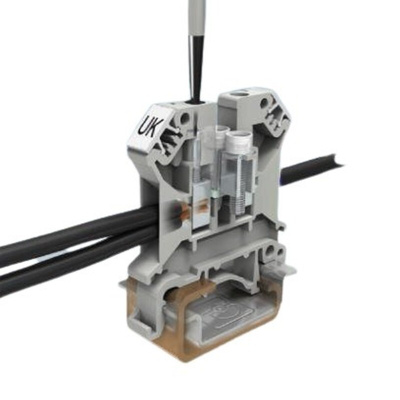

Easily build an electrical circuit in an industrial control cabinet with this feed-through terminal block from Phoenix Contact. Its screw terminals quickly connect electrical inputs and outputs while providing protection against short circuits and current surges.
The unit features a robust polyamide housing that's resistant to corrosion for improved longevity. It also provides insulation to protect operators against electric shocks. As it accepts wires across a broad diameter range of 24 to 12AWG (American Wire Gauge), the block is compatible with a wide variety of conductors.
You can safely use this feed-through terminal block in areas where explosive atmospheres or gases may be present and it has a wide operating temperature range from -60°C to +105°C. That makes it a reliable choice for the chemical and petrochemical industries.

• Compact dimensions of 42.5 (L) x 42 (H) x 5.2mm (W) take up minimal space in your setup
• Universal foot that easily clips onto a DIN rail
• Resistant to temperature rises for improved reliability in a wide range of operating conditions
• Meets IEC/EN 60079-7 (International Electrotechnical Commission/European Norm) requirements for the design, construction, testing and marking of electrical equipment

UL E60425

Datasheet 3003347

Installation Sheet - Terminal blocks

Instruction Sheet - 3003347

Line Drawing - 3003347
