209-123, Wago 209 Series Mounting Foot with Screw for Use with Terminal Blocks with mounting flange, IECEx

Cage Clamp - 260 Series

Cage clamp® connection terminal blocks with side entry are screwdriver actuated and include fixing flanges at either end of the terminal block. A DIN Rail mounting adapter is also available which screw mounts into the base of the terminal blocks. It is recommended that the maximum distance between adapters is 35-40 mm.

Features and Benefits

• 2 Conductor-through terminal block
• 6 kV surge voltage
• 101-3877 is a mounting foot with screw for DIN 35 rail

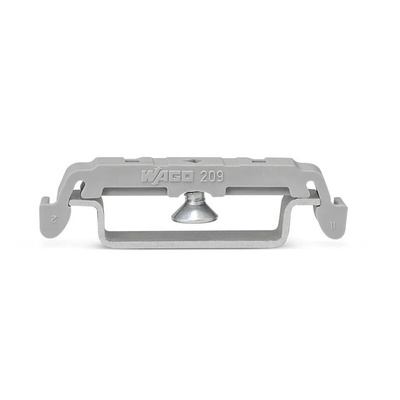

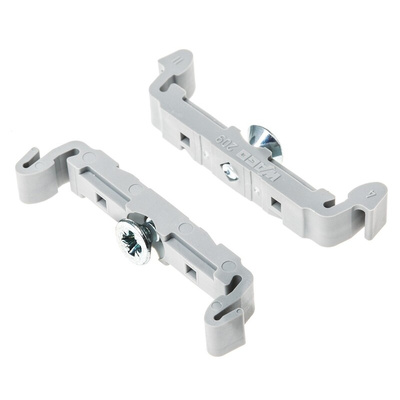

Wago Mounting Foot, DIN Rail Terminal Block Accessory Type, 1.8g Weight - 209 Series - 209-123

Need to bridge the gap between a component and a DIN rail? In steps this mounting foot from Wago. It simply screws onto a terminal block then its fixing flanges clip onto your rail. As this unit comes with a screw, you have the kit on hand to get set up straight away. Removal is a breeze too, as you just unclip the adapter when you want to modify your system.

Features & Benefits

• Weighs just 1.8g, keeping extra load on your rail to a minimum
• Compact dimensions of 6.4 (W) x 42.3mm (H) take up little space on busy arrangements
• 10 in a pack to keep you well-stocked

Applications

• Power supplies
• Control modules
• Process and packaging facilities

What's a DIN rail?

A DIN rail is a metal strip that's used to mount components like terminal blocks and circuit breakers in an equipment rack.

How much space should I leave between each mounting foot on my rail?

When you're installing multiple components with mounting feet onto your rail, it's best to leave a distance of 25 to 30mm between each adapter.
