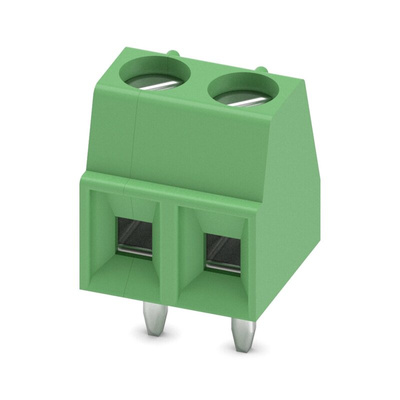

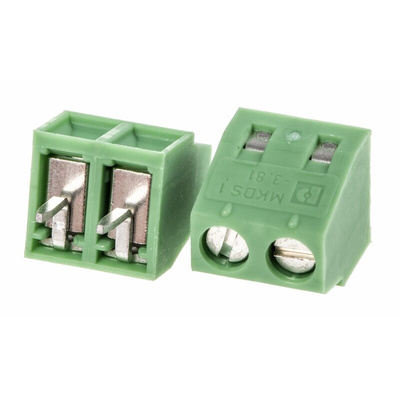

1727010, Phoenix Contact MKDS 1/ 2-3.81 Series PCB Terminal Block, 2-Contact, 3.81mm Pitch, Through Hole Mount, 2-Row, Solder

Phoenix Contact PCB Terminal Block, Nylon, 12A Current Rating - MKDS 1/ 2-3,81 - 1727010

When you're wiring connections to your PCB, make the job quick and easy with this terminal block from Phoenix Contact. Measuring just 7.3 (L) x 7.61 (W) x 12mm (H), it's a compact unit that accepts wires in a wide size range from 30 to 16AWG. This means it saves you space when building your installation. It weighs in at just 1g so it won't place any undue stress on your system
The block's housing is made from nylon to deliver electrical insulation along with mechanical strength and temperature resistance. With that, and a separate solder pin and terminal sleeve providing reliable strain relief, you can be sure it'll give you a long service life. As this device uses the moving cage connection principle, it's widely compatible and achieves robust joins.

Features & Benefits

• Solder termination makes a strong and durable connection
• Through-hole mounting offers a robust connection with your PCB
• High contact force means low temperature rise, minimising risk of damage to components from heat dissipation
• Can be used to connect two conductors

Approvals

UL (E60425); CSA (LR13631)

Phoenix Contact COMBICON 3.81mm PCB Terminal Blocks

UL E60425

Datasheet

Line Drawing - 1727010
