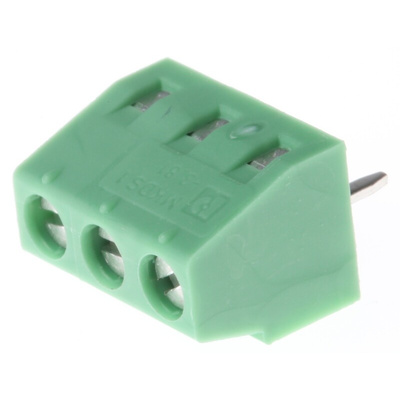

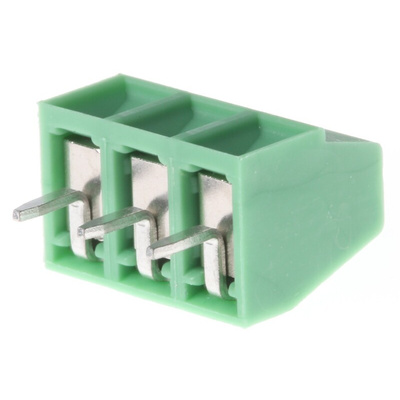

1727023, Phoenix Contact MKDS 1/ 3-3.81 Series PCB Terminal Block, 3-Contact, 3.81mm Pitch, Through Hole Mount, 1-Row, Solder

Phoenix Contact COMBICON MKDS 3.81mm PCB Terminal Blocks

COMBICON MKDS PCB terminal blocks are small and compact in design.

Features and Benefits

• Robust moving cage principle accepts wires up to 1.5 mm² (1.0 mm² stranded)
• Reliable strain relief due to separate solder pin and terminal sleeve
• Rated at 200 V/12 A
• Polyamide 6.6 Krilen UL94V0

Approvals

UL (E60425), CSA (LR13631)

Phoenix Contact PCB Terminal Block, 3 Way, 400V Voltage Rating - MKDS 1/ 3-3.81 - 1727023

Use this PCB terminal block from Phoenix Contact to connect wires to your circuit board. It has a compact design with horizontal terminals, a tapered housing shape and low pitch size of 3.81mm. This means it needs minimal installation space, making it handy for building circuits on small or crowded boards.
Thanks to a moving cage, the block accepts wire sizes between 30 and 16AWG, so it's a versatile option. The screw terminals ensure wires are held securely and slotted screw heads mean you won't need special tools to tighten them. A terminal sleeve, which is separate from the solder pin, provides strain relief to improve wire durability. The housing is made from polyamide, so it's insulating and mechanically strong. It's also resistant to heat, chemicals and wear, making it suitable for use in industrial automation, electrical appliances and transport industry applications.

• Meets UL94V0 standard for flame retardancy, so burning stops up to 10 seconds after ignition
• Connection conforms to EN-VDE standards for a universal fit
• Through-hole mounting to create a reliable connection with circuit boards
• Suitable for wave soldering to speed up electronics assembly

Approvals

UL (E60425); CSA (LR13631)

Phoenix Contact COMBICON 3.81mm PCB Terminal Blocks

UL E60425

Datasheet

Line Drawing - 1727023
