1791855, Phoenix Contact FFKDSA1/V-5.08 Series PCB Terminal Block, 1-Contact, 2.54mm Pitch, Through Hole Mount, 1-Row, Solder

Phoenix Contact COMBICON FFKDS 2.54mm PCB Terminal Blocks

Supplied in blocks of 10
End terminal block (5.08 mm wide), supplied in blocks of 5
Both available with conductor connection horizontal or vertical to PCB

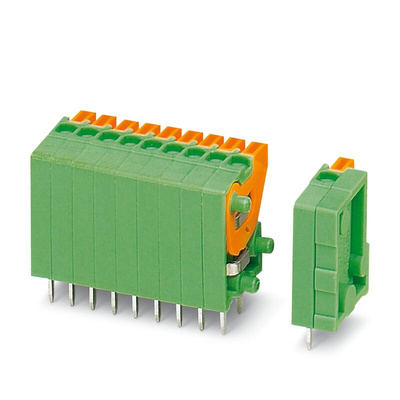

Spring terminals are side stackable to allow desired number of ways in terminal row

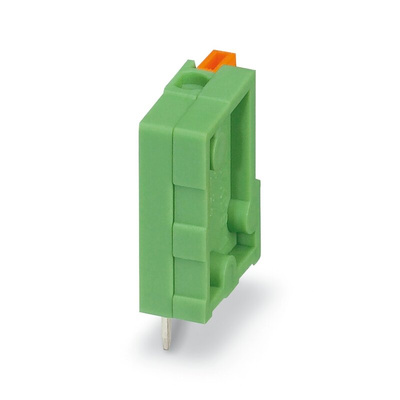

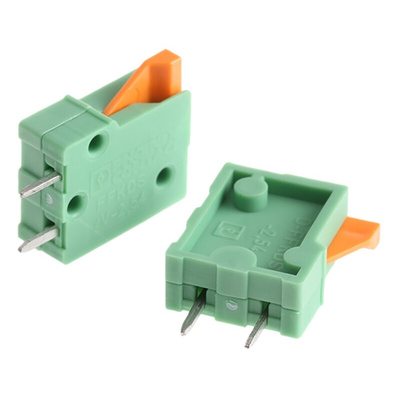

Phoenix Contact PCB Terminal Block, 1 Way, 320V Voltage Rating - FFKDSA1/V-5.08 - 1791855

Customise your wire-to-board connections using this PCB terminal block from Phoenix Contact. It's an end block that's one row long with a latch for side-by-side stacking with other terminal blocks in the FFKDSA range. This means it's possible to create a complete row with the exact number you need.
For versatility, the block accepts both solid and stranded wires in sizes between 26 and 20AWG. It's fitted with push-in spring terminals, so connecting wires is quick and easy. Highly conductive copper-alloy contacts mean you can achieve reliable connections. The contacts are housed in tough polyamide to protect against heat, chemicals and wear.
For a dependable connection to the circuit board, the unit uses through-hole mounting with double pins. As the terminals are made from nickel and tin, they're suitable for wave soldering. Use this terminal block in electronics assembly or the custom-building of robotics and automation devices.

• UL94 V2 flammability rating means it's self-extinguishing, to increase fire safety of equipment
• Pitch of 5.08mm to help keep connections compact
• Orange lever for the easy disconnection of wires

Connector,spring terminal,horizontal,Product Data
