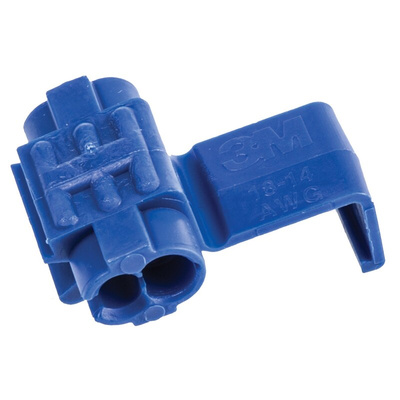

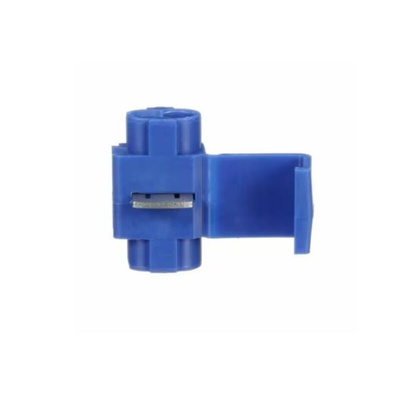

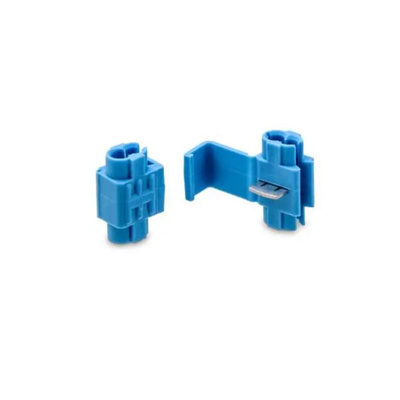

3M, Scotchlock 560B Tap Splice Connector, Blue, Insulated, Tin 18 → 16 AWG, Контакты

3M Scotchlok Connectors 500 Series

When durability and reliability is your concern, you can put your trust in 3M Scotchlok connectors.

Features and Benefits

• Self-stripping connectors for quick splicing rigid or flexible copper wires
• Cross-section between 0.5 and 4 mm²
• No special tools required.
• Fast connection

Applications

Splice connectors are ideal for tool-less cable termination. It features a sharp internal metal insert that safely penetrates wire insulation with a simple pressing motion. Once it is locked in place, the connector securely holds the wires in place, creating a quick and easy wire connection.

Why Choose 3M?

3M are a trusted name in cabling and cable connectors. In everything from convenient domestic solutions to complex industrial set ups, 3M provide cables and electrical connectors to suit your needs. RS Components combines its excellent customer service with a wide range of high quality 3M products to provide the best support possible for your installation or project.

3M Splice Connector, 600V Voltage Rating, 1 to 2.5mm² Conductor Cross-Section Range - Scotchlock 560B Series - 560B

Need to link up with appliances in harsh conditions? Cover your bases with this 3M splice connector. It directly crimps wires together, so you can make a strong connection without sweating over soldering. As it forms an airtight seal around its conductors, the unit shrugs off damage from corrosion. Data and power move through it in a flash thanks to its conductive tin-plated brass contact. This connector pierces through insulation to reach the wires, cutting out the need to strip cables and speeding up assembly.

Features & Benefits

• Insulating PP body for safe handling
• Connects wires with a squeeze, making for quick crimping
• Flame-retardant to protect connections against fires

Applications

• Control devices
• Power distribution systems
• Automotive industry

Can I use this connector in hot industrial environments?

This unit handles operating temperatures up to +105°C, so it's a safe option for use in tough environments.

Datasheet

Drawing

Brochure - Insulation Displacement Connectors
