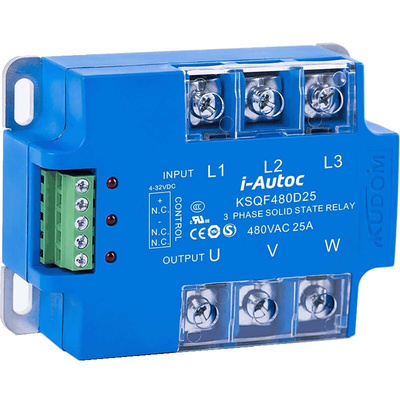

KSQF480D40, i-Autoc Solid State Relay, 40 A Load, Panel Mount, 530 V ac Load, 32 V dc Control, Реле

KSQF Series Three Phase Solid State Relay

I-Autoc KSQF series 3 phase AC output solid state relay. Relays control voltage is 90 V ac to 280 V ac or 4 V dc to 32 V dc with load currents at 25A, 40A, 60A, 80A, 100A available. Wide load voltage range of 48 V ac to 660 V ac. SCR output and dielectric strength ≥4000 Vrms. 3 phase motor control, kiln temperature control system, large oven etc. RoHS complaint.

Zero switching or random-on
Load current 25A to 100A @ 48 V ac to 660 V ac
SCR output
Dielectric strength 4000 Vrms
Opto-isolation
Internal MOV/RC protection circuit
RoHS compliant

I-Autoc KSQF Series Solid State Relay

Approvals

RoHS

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Datasheet
