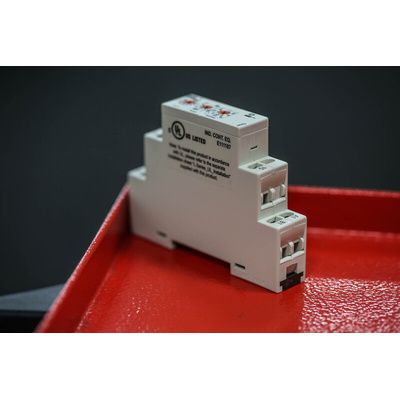

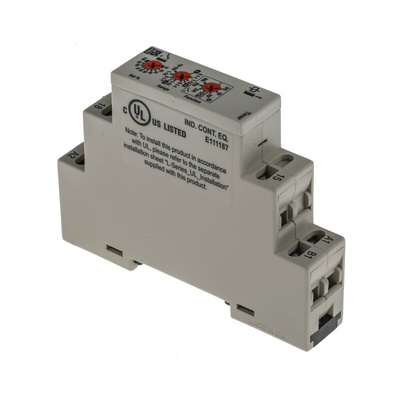

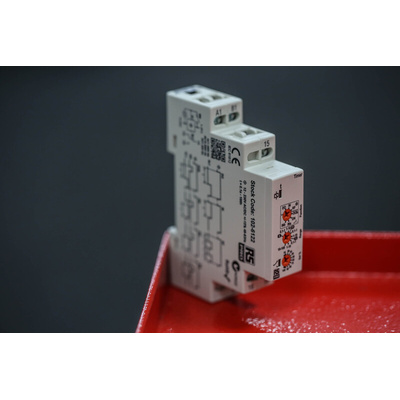

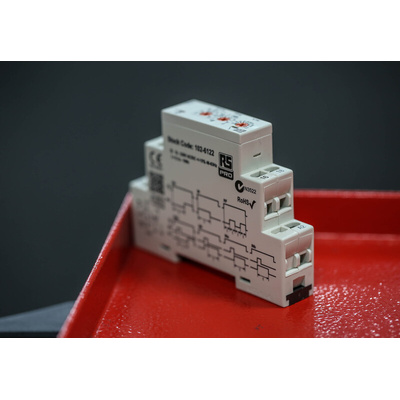

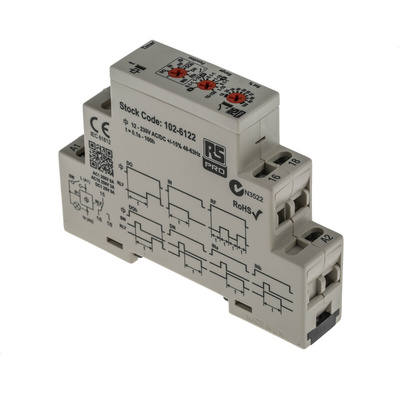

RS PRO DIN Rail Mount Timer Relay, 12 → 230V ac/dc, 0.1 s → 100h, SPDT

RS PRO Multi-function Timer Relay

The RS PRO multi-function timer relay is a compact digital equipment with high precision and accuracy to suit a wide variety of applications. It performs the function of providing supply initiated On delay, supply initiated interval, supply initiated symmetrical Off/On flasher, switch initiated On delay, switch initiated Off delay, switch initiated interval (Trailing) and switch initiated interval (leading) in the range between 0.1 seconds to 100 hours. This can be installed into new and existing applications without much hassle.

Features and Benefits

• The supply voltage rating ranging from 12VAC to 230VAC and 12VDC to 230VDC


• 1C/O SPDT contact configuration with relay output 8A


• 7 selectable time ranges between 0.1seconds to 100hours like 0.1second to 1second, 1second to 10seconds, 0.1minutes to 1minute, 1minute to 10minutes, 0.1hours to 1hour, 1hour to 10hours, 10hours to 100hours


• 3 Switch initiated functions are re-trigger able


• Fine adjustment of selected time range


• LED warning indication if the function is changed whilst powered


• Switch initiated functions ideal for used in watchdog circuits


• Green LED indication for supply and timing status


• Red LED indication for relay status


• Width is 17.5mm


• Din rail mounting

Applications

• Textiles


• Chemical industry


• Mining


• Irrigation


• Raw material handling


• Food and beverages


• Industrial process control

Certifications

UL approved
cULus approved
IEC 61812
CE certified
C-tick certified
EN 61000-6-2
EN 61000-4-3
EN 61000-6-4
IEC 60947-1
IEC 60664
