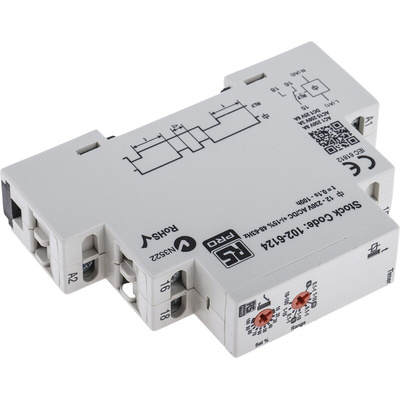

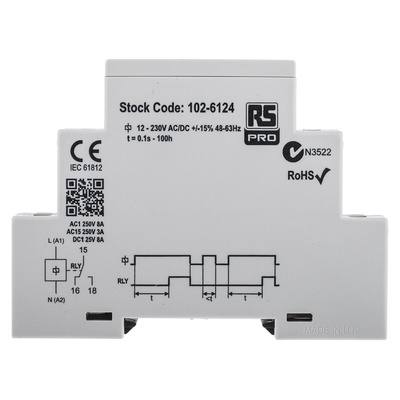

RS PRO DIN Rail Mount Timer Relay, 12 → 230V ac/dc, 0.1 s → 100h, SPDT

RS PRO Single-function Timer Relay

The RS PRO single-function timer relay performs the function of providing ON delay in the range between 0.1 seconds and 100hours. It is a compact digital equipment with high precision and accuracy to suit a wide variety of applications. This timer relay can be installed into new and existing applications without much hassle. It has two rotary switches at the front of the unit to set the timing range.

Features and Benefits

• The supply voltage ranging is between 12VAC to 230VAC and 12VDC to 230VDC


• 1C/O SPDT contact configuration with relay output is 8A


• 7 selectable time ranges between 0.1seconds to 100hours like 0.1second to 1second, 1second to 10seconds, 0.1minutes to 1minute, 1minute to 10minutes, 0.1hours to 1hour, 1hour to 10hours, 10hours to 100hours


• Fine adjustment of selected time range


• Green LED indication for supply and timing status


• Red LED indication for relay status


• Width is 17.5mm


• Din rail mount type

Applications

• Textiles


• Chemical industry


• Mining


• Irrigation


• Raw material handling


• Food and beverages


• Industrial process control

Certifications

UL approved
cULus approved
IEC 61812
CE certified
C-tick certified
EN 61000-6-2
EN 61000-4-3
EN 61000-6-4
IEC 60947-1
IEC 60664
