RS PRO DIN Rail Mount Timer Relay, 12 → 230V ac/dc, 0.1 s → 100h, DPDT

RS PRO DPDT Time Delay Relay, 12 to 230 V AC/DC, DIN Rail Mounting

Looking for a solution that controls power flow to your instruments and devices? This RS PRO time delay relay regulates electricity transmissions by starting and stopping the relays at determined times.
Green and red LED indicators show the supply, timing and relay statuses of the unit so that you can easily spot its present phase of operation and make adjustments if needed. The item's compact design and DIN rail mounting capability enable you to install it in limited spaces and keep it out of the way.
This product is UL (Underwriters' Laboratories) certified which means it passed quality and safety tests. You can use the timer relay to operate industrial applications like conveyor belts.

Features and Benefits

• DPDT (Double Pole, Double Throw) contact configuration
• Dimensions of 17.5 (width) x 66.5 (height) x 89 mm (length)
• Frequency sensing range of 48 to 63 Hz
• Maximum operating temperature of +60°C
• Minimum operating temperature of -20°C
• DIN rail mounting type
• Two poles
• CE (European Conformity) certified
• C-tick (compliant with EMC/radiocommunications equipment)
• IEC (International Electrotechnical Commission) 61812 standards met
• Supply voltage of 12 to 230 V AC/DC
• Screw terminal type
• Time delay of 100 ms

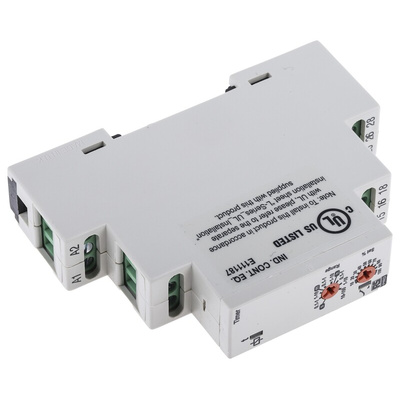

UL Certification

RS PRO Datasheet
