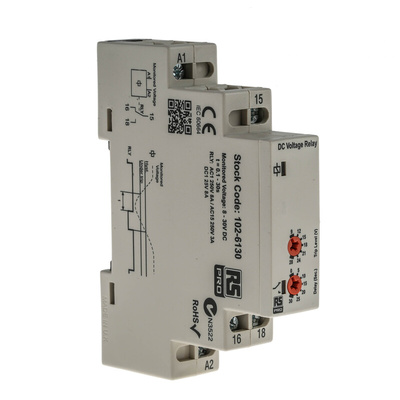

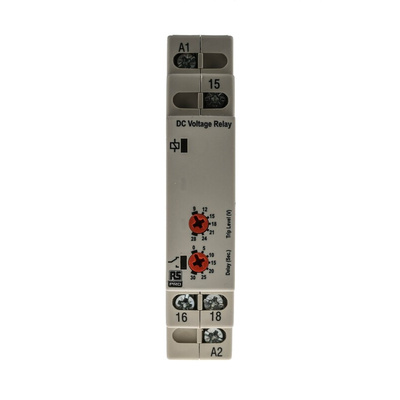

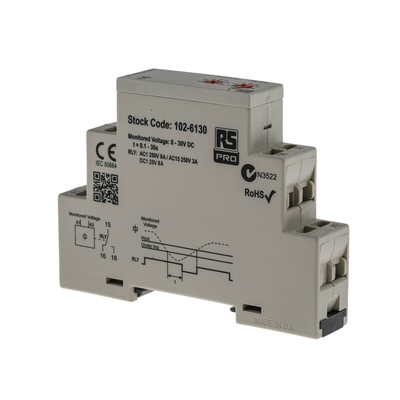

RS PRO Voltage Monitoring Relay, 1 Phase, SPDT, 12 → 24V dc, DIN Rail, Реле контроля

RS PRO Voltage Monitoring Relay With SPDT Contacts, Undervoltage

This RS PRO relay monitors undervoltage to protect motors and equipment from being damaged by blowouts. The multi timer can sense a maximum voltage of 24 V DC and has a single pole double throw (SPDT) contact configuration.

A microprocessor-based relay like this one is programmable and offers high reliability and efficiency as well as a fast operating system. Its self-monitoring abilities help reduce the overall cost of maintenance and you'll also find it sports a compact design and uncomplicated wiring system. The relay is suited to 12 V to 24 V batteries and has a trip level ranging between 9 V DC to 28 V DC.

This type of advanced relay is useful for large systems and centrally coordinated backup protection applications. It's housed in an orange UL94 (Underwriters Laboratories) approved flame retardant casing and conforms to European health, safety and environmental protection legislation.

Features and Benefits

• Voltage monitoring multi timer with DIN (Deutsches Institut für Normung, or the German Institute of Standardisation) rail mount
• Contact configuration of SPDT
• Minimum voltage sensed of 12 V DC
• Maximum voltage sensed of 24 V DC
• Voltage sensitivity of under voltage
• Time delay of 0 s to 30 s
• Supply voltage of 12 V DC to 24 V DC
• One pole screw-type terminal
• One electrical phase
• Operating temperature range of -20°C to +60°C
• Dimensions of 17.5 mm x 66.5 mm x 89 mm
• Meets CE, EMC EN 61000-6, IEC standards
• UL approved
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

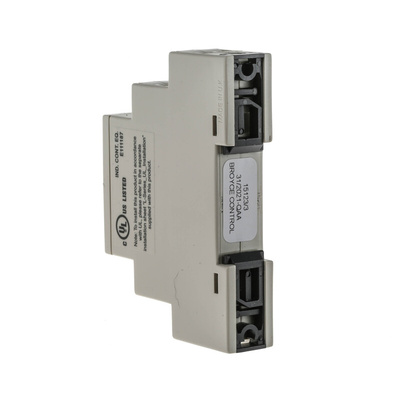

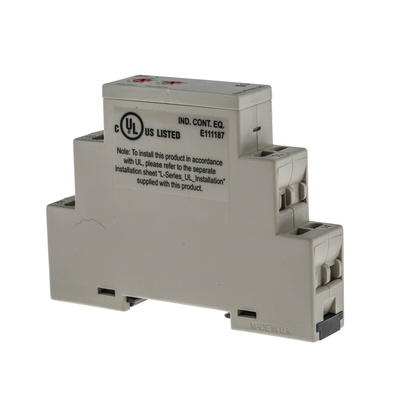

UL Certification
