RS PRO Breadboard Prototyping Board 240 x 195 x 21mm, Макетная плата

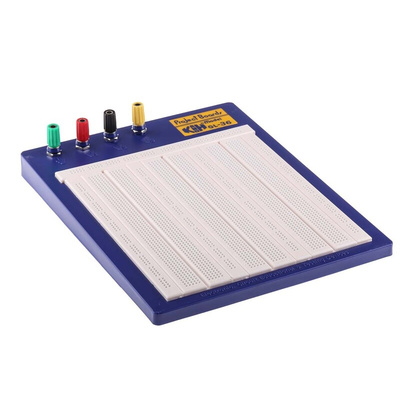

RS PRO Breadboard Prototyping Board 240 mm x 195 mm x 21 mm

When you need to test out an idea or check how a circuit reacts under a given set of parameters, this breadboard from RS PRO can be used to build a prototype. Constructing a temporary circuit on the board is fast, easy and doesn't need soldering.

The prototyping board features 2,420 connection points and 24 switchable integrated circuit (IC) chips. The configuration offers a potential of 1,920 horizontal interconnections and 500 vertical interconnections. Switches can be implemented and changed quickly and simply. It includes an 8-way jumper link and four integrated terminal binding posts, which offer a connection option for 4 mm test leads.

Measuring 240 mm deep x 195 mm wide, this breadboard can be used to test circuit set-ups in scenarios ranging from training and troubleshooting to testing out new components.

Features and Benefits

• Breadboard prototyping board for experimental set-ups
• Length of 240 mm
• Depth of 195 mm
• Height of 21 mm
• 2,420 connection points
• 1,920 horizontal connections
• 500 vertical connections
• 24 switchable integrated circuits (ICs)
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
