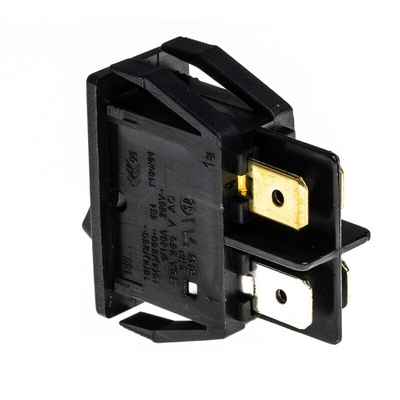

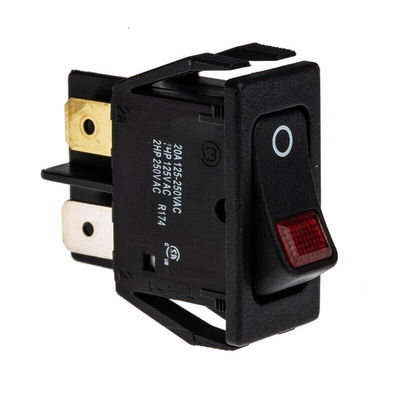

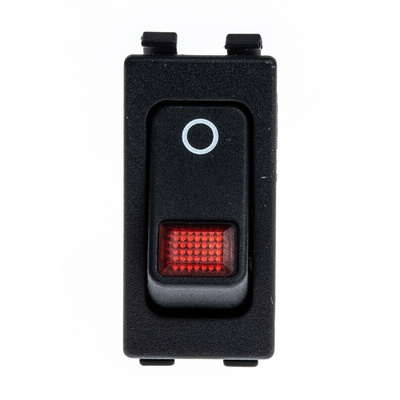

1555.3102, Marquardt Illuminated DPST, On-None-Off Rocker Switch Panel Mount, Клавишный переключатель

Marquardt 1550 Series Rocker Switches

Marquardt 1550 series single and double pole rocker switches. The 1550 rocker switches are suitable for use in Class II appliances and are available with non-illuminated or window illuminated (red, amber or green) 230 V ac neon actuators. The 1550 rocker switches have silver contacts with SPST or DPST (on-off) switching formats, a contact resistance <100 mΩ and an insulation resistance of >100 mΩ. Electrical connection is made via the 6.3 mm Faston/Quick Connect style terminals.

Illuminated or non-illuminated actuators with or without power on/off symbols
High current rating, up to 16 A
High inrush current (capacitive) up to 100 A
Contact distance ≥3 mm
Operating force 3 to 5N
UL 94 V-2 flammability rated (apart from stock numbers 607-7286 and 103-3871 which are UL 94 V-0 rated)

Note

Stock numbers 607-7286 and 103-3871 conform to the household appliances standard IEC/EN 60335-1:2001/2002 chapter 30.
The current rating and life expectancy figures quoted are nominal, see datasheet for further ratings.

Approvals

UL; CSA; ENEC

Marquardt Rocker Switches

CSA 166260

UL E41791

Rocker switch 2P,
