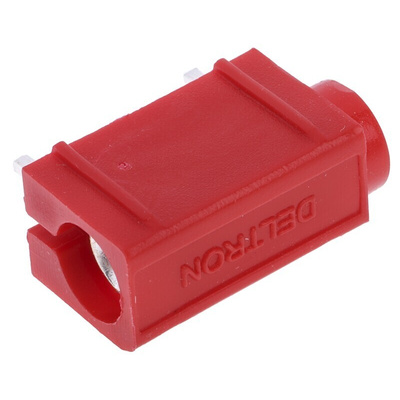

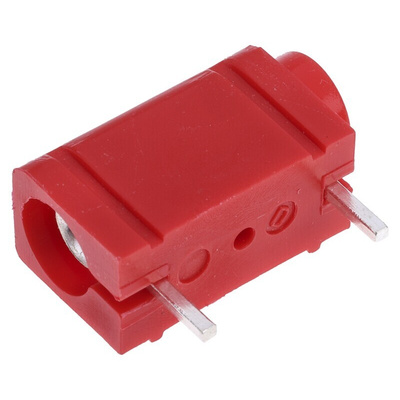

RS PRO Red Female Test Socket, 4 mm Connector, 10A, 50V, Silver Plating

RS PRO Red Female Test Socket, 50 V, 10 A

Measure and test your printed circuit board (PCB) with this RS PRO female banana socket. It has silver-plated brass pins to create a reliable connection when testing. The centre contacts are fully shrouded to protect you and your equipment from electrical hazards.
The plug is designed with a simple push fitting for quick installation on your PCB. It's housed in a durable acetal plastic body with moulded grooves for easy stacking of multiple sockets. The acetal material also provides effective insulation for added safety. It comes in an industry-standard red colour to help you organise and identify your components. A test socket like this one is commonly used by engineers in repair workshops and electronics manufacturers on assembly lines.

Features and Benefits

• Red colour
• Connector size of 4 mm
• Brass contact material
• Silver contact plating
• Current rating of 10 A
• Female gender
• Acetal insulation material
• Length of 23.3 mm
• Test connector type
• Voltage rating of 50 V

The RS PRO Test socket is suitable for attaching to a printed circuit board, giving you an easy way to check the status of a particular location in your circuit. The two through-hole pins allow it to be easily fitted during assembly and ensure that it will remain secure without twisting or breaking off.

Colour: Red
Gender: Female

Dimensional Drawing

RS Pro Datasheet
