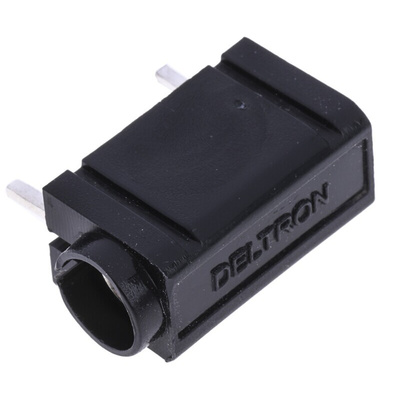

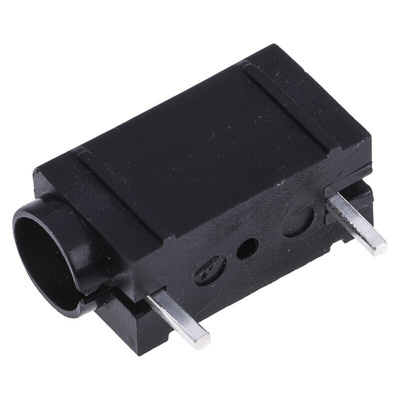

RS PRO Black Female Test Socket, 4 mm Connector, 10A, 50V, Silver Plating

RS PRO Black Female Test Socket, 50 V, 10 A

This test socket from RS PRO is suitable for attaching to a printed circuit board (PCB), giving you an easy way to check the status of a particular location in your circuit. The two through-hole pins allow it to be easily fitted during assembly and ensure that it will remain secure without twisting or breaking off.
The socket takes a standard 4 mm test plug, also known as a banana plug. The silver-plated brass contacts ensure an effective and reliable connection. It's designed for low-voltage applications or for connecting a board to a power supply, oscilloscope or multimeter. If used to carry power, the connector is rated to 10 A.
This model is intended for use in 50 V or ground connections and features a monopole design, meaning it only carries a single conductor. The acetal outer shell provides effective insulation, shielding you and your equipment from electrical hazards.

Features and Benefits

• Black colour
• Connector size of 4 mm
• Brass contact material
• Silver contact plating
• Current rating of 10 A
• Female gender
• Acetal insulation material
• Length of 23.3 mm
• Test connector type
• Voltage rating of 50 V

The RS PRO Test socket is suitable for attaching to a printed circuit board, giving you an easy way to check the status of a particular location in your circuit. The two through-hole pins allow it to be easily fitted during assembly and ensure that it will remain secure without twisting or breaking off.

Colour: Black
Gender: Female

RS Pro Datasheet
