010398 & P3-63/EA/SVB/N, Eaton 3 + N Pole Flush Mount Switch Disconnector - 63 A Maximum Current, 37 kW Power Rating, IP65

1038406
Номер производителя: 010398 & P3-63/EA/SVB/NПроизводитель: Eaton
Цена за шт.
36078.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

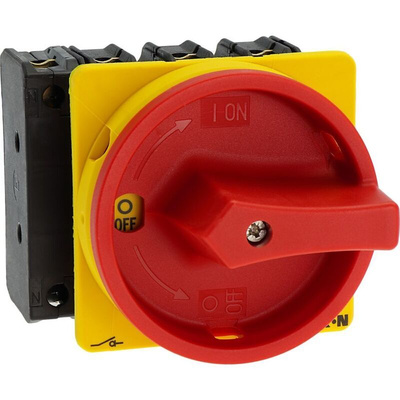

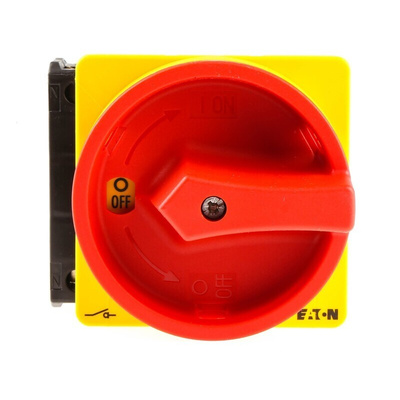

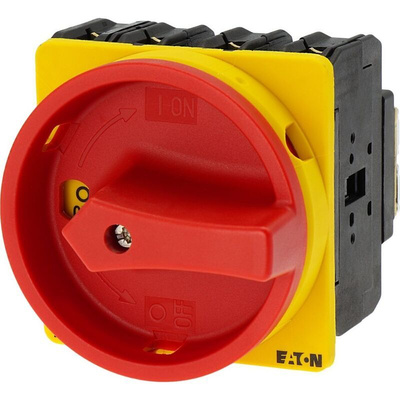

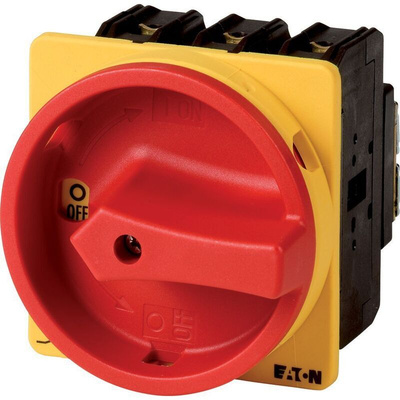

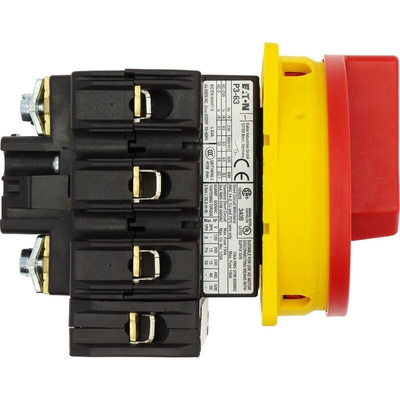

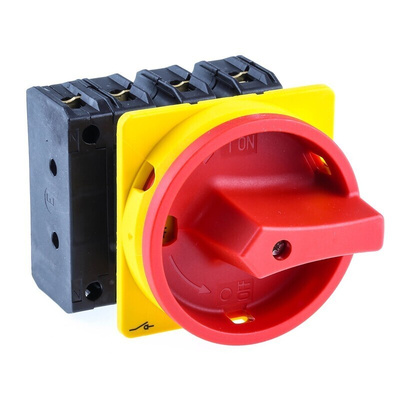

Eaton Non-Fused Isolator Switch - P3-63/EA/SVB/N

Eaton's isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.

Features & Benefits

• The perfect solution for installing as a safety measure
• Used as an emergency switching off/emergency stop device
• The basic functions are when used as a main switch, maintenance switch or manual override switch
• Red rotary handle and yellow locking ring, providing an aesthetically pleasing finish
• 3 pole + N
• Main functions are as a main switch, maintenance switch and repair switch
• Lockable in the 0/OFF position, with up to three padlocks
• Flush mounting
• IP65 rating - this means that the enclosure part of the isolator has ingress protection against dust and is also protected against low-pressure jets of water that comes from all directions
• Features an ambient operating temperature of -25 to +50 °C
• Has a mechanical shock resistance of 15g

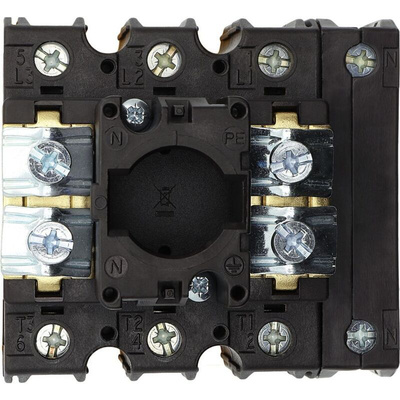

• M5 screw terminal
• Number of switches -1

What is the difference between a fused switch disconnector and a non-fused switch disconnector?

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.

Техническая спецификация
pdfP3-63/EA/SVB/N Datasheet
Глубина:
114мм
Длина:
87мм
Замки:
Да
Класс переключателя:
640A
Количество полюсов:
3 + N
Максимальный ток:
63A
Мощность номинальная:
37kW
Номинальное напряжение:
690В
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-25°C
Сброс конфигурации:
Single
Серия:
P3-63
Степень защиты IP:
IP65
Тип клеммы:
Винт
Тип монтажа:
Заподлицо монтаж
Цвет рукоятки:
Красный
Ширина:
101мм
Электрическая фаза:
1, 3
