048339 T0-3-8222/E, Eaton, 3PST 2 Position 90° Changeover Cam Switch, 690V ac, 20A, Rotary Actuator, Переключатель

Changeover (CO) Switches

Professional range of Eaton flush and centre-mounted changeover switches. All the changeover switches are IP65 rated and have an option of either 2, 4,6 or 8 auxiliary contacts. The control switches are available with either a 45, 60 or 90° switching angle.

IP65 rated
2, 4, 6 or 8 auxilliary contacts
Centre or Flush mounting available
45, 60 or 90° switching angle

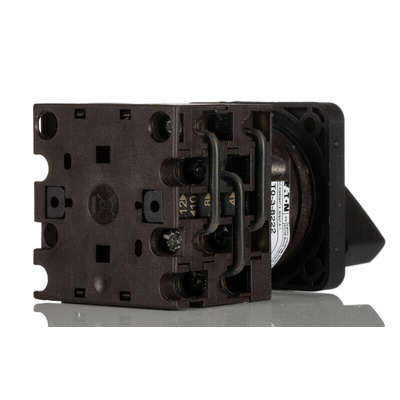

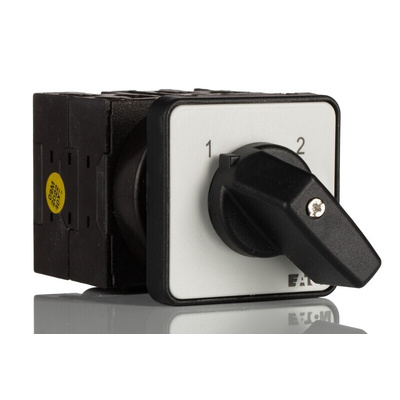

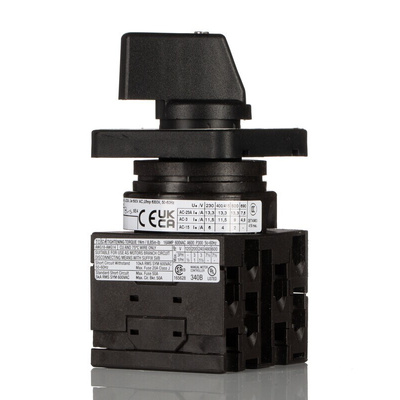

Eaton Changeover Switch, 48mm Length, 20A Current Rating - 048339 T0-3-8222/E

Safely transfer power loads with this changeover switch from Eaton. It has both single-phase and triple-phase options, making it a versatile option for domestic and commercial environments. Its housing is made from tough plastic, which is resistant to the impacts you'd expect in harsh environments. Compact dimensions of 48 (H) x 105 (D) x 48mm (W) mean you can install this switch where space is limited. Thanks to a current rating of 20A, you can rely on it for efficient power transmission with heavy-duty equipment such as manufacturing machinery.

• Voltage rating of 690V for use in high-power applications
• Low weight of 0.121kg means it won't place much strain on your equipment
• Convenient screw terminals for quick installation
• IP65 rating means it's shielded from dust and can withstand low-pressure water jets, for safe industrial use

What's this switch made from?

The housing body of this switch is made from tough plastic that's resistant to chemicals and impact, so you can use it in contaminated settings.

Where can I mount this switch?

This switch can be mounted in any position on your industrial equipment for ease of access.

Note

Eaton formerly known as Moeller

Eaton

EATON Datasheet

Instruction Sheet - T0.
