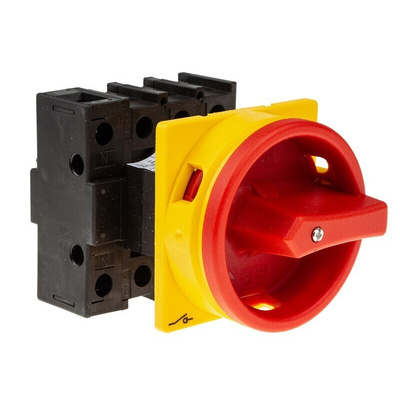

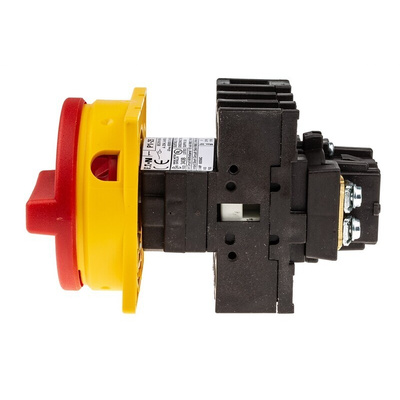

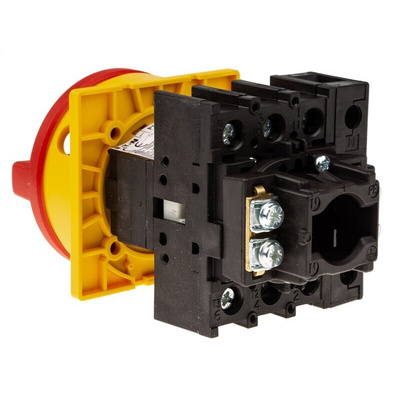

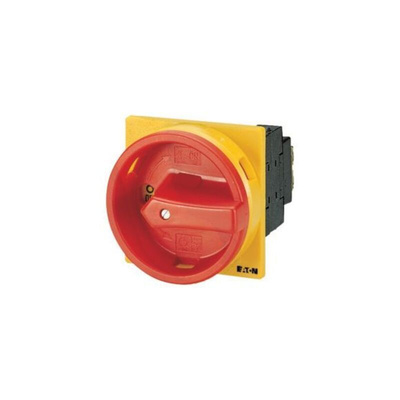

081587 P1-25/EA/SVB/N, Eaton 3P+N Pole Panel Mount Isolator Switch - 25A Maximum Current, 13kW Power Rating, IP65

Eaton Isolator Switch, Lockable in Off Position, 5kA Short-Circuit Current Rating - 081587 P1-25/EA/SVB/N

Looking for a switch that can boost the safety of your motors and other high-load industrial gear? You're in safe hands with this isolator switch from Eaton. One turn of the rotary handle powers down connected equipment quickly to reduce injury risks to people working near moving machinery or other potential hazards. To prevent unauthorised tampering, there's a security-enhancing ring that lets you lock it in the off position. You can count on this switch to shield you from excess current faults thanks to integral short-circuit protection up to 5kA.

P1-25/EA/SVB/N Non-Fused Switch Disconnector

• Clearly visible red handle for quick identification when you need it most
• Suits motors with power ratings from 1 to 10HP, making it a versatile choice
• Multiple possible uses, including as a main switch or maintenance/service relay in addition to its emergency stop function
• Resists mechanical and sinusoidal shock for reliable, long-lasting service

Does this unit have an ingress protection rating?

Yes, this switch's IP65 rating indicates its front is totally dustproof as well as being resistant to low-pressure jets of water from any angle. This makes it a reliable choice for use in harsh industrial environments.

Note

Eaton formerly known as Moeller

P1-25/EA/SVB/N Datasheet

Brochure - Safe Switching, Isolating & Control

Instruction Sheet - 081587 P1-25/EA/SVB/N

Catalogue - P Switch-Disconnectors And T Rotary Cam Switches
