091079 & P1-32/EA/SVB/N, Eaton 3 + N Pole Panel Mount Switch Disconnector - 32 A Maximum Current, 15 kW Power Rating, IP65

Eaton Non-Fused Switch Disconnectors - P1 Series Isolators

The P1 series of switch-disconnectors are compact and robust, they are ideal for hard-wearing industrial environments with a rated uninterrupted current of up to 32 Amps. This range of isolator switches from Eaton is suitable for use in applications where there is a need to disconnect electrical equipment from the circuit. The need for this form of local isolation is most commonly needed for repair and maintenance of the electrical equipment on the de-energised circuit. These disconnect switches can also be used as safety switches.

• Preforms local isolation, manual override & safety switch functions

What is the difference between a fused switch disconnector and a non-fused switch disconnector?

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.

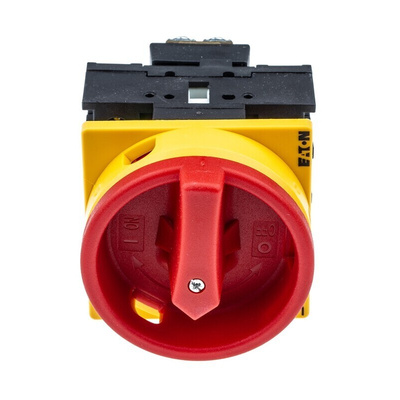

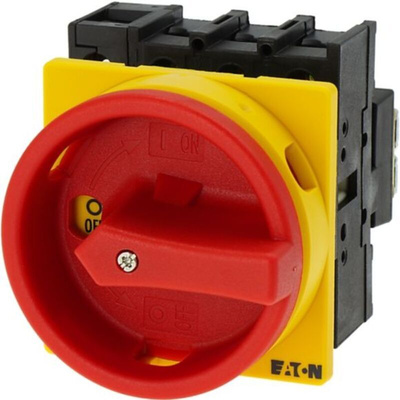

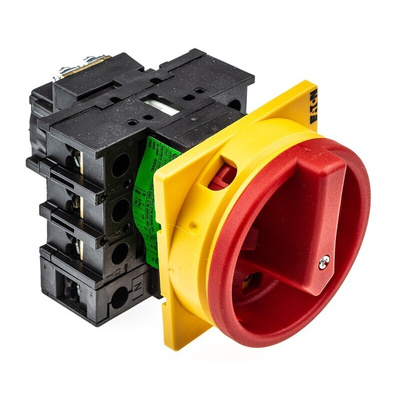

P1-32/EA/SVB/N Non-Fused Switch Disconnector

Red rotary handle and Yellow locking ring
3 pole + N
Lockable in the 0/OFF position
IP65 rating - Offering the enclosure part of the isolator ingress protection against dust and protection against low-pressure jets of water
Flush mounting
Emergency switching off function
15 kW Power Rating

P1-32/EA/SVB/N Datasheet
