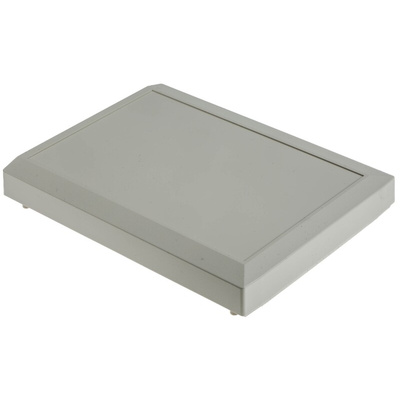

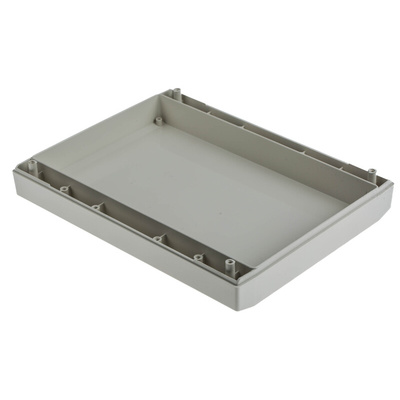

B4016617, OKW ABS Lid, 22mm H, 168mm W, 220mm L for Use with Datatec Enclosure

DATEC terminal housing, type M

These housings are designed for mounting a printed circuit board in Euro format 100 x 160 mm. The front control panel is tilted by 20° and can optionally be provided with a front plate or a hood. The use of a hood with a front plate is also possible. It can also be used as a table or wall housing (wall mounting bracket).

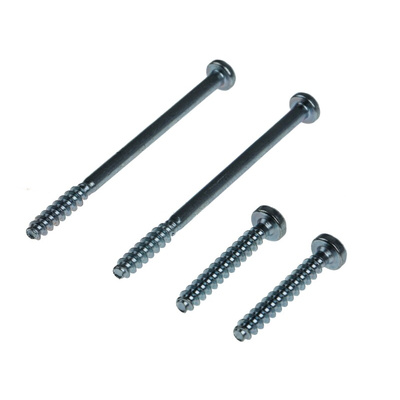

The type H and type S aluminium front plates are available for use with a hood. There is also a mounting plate for installing the most common swipe readers and a wall bracket for wall mounting of the Datec terminal housing. The necessary screws are also included in the delivery.

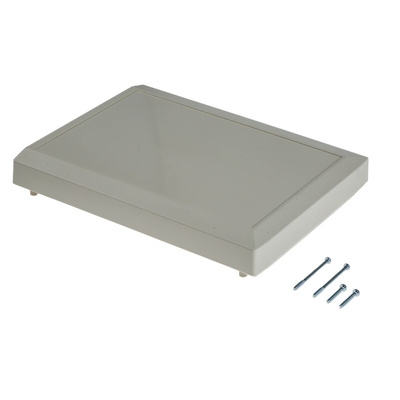

Flat Lid (B 40 16 417)

to cover up the terminal compartment

Flat Cover (B 40 16 617)

provides IP54 protection, maximum dimension of keypad 195.1 x 129.2 mm

Front Panel S (B 41 16 106)

matt anodised, aluminium, 217.4 x 165.4 x 2 mm
Discontinued

Front Panel H (B 41 16 116)

matt anodised, aluminium, 209 x 128 x 2 mm
Discontinued

Support Plate (B 41 16 136)

designed for mounting types of card readers/scanners to the one-piece lid with slot
Discontinued

Wall Bracket (B 41 16 147)

galvanised sheet steel, secured by 2 screws in the terminal compartment

Note

The housing does not come with a lid, accessories must be purchased separately.

Cover B 4016617 Drawing
