TGW-715, ICP DAS USA Data Acquisition

ICP DAS USA Profinet Gateway

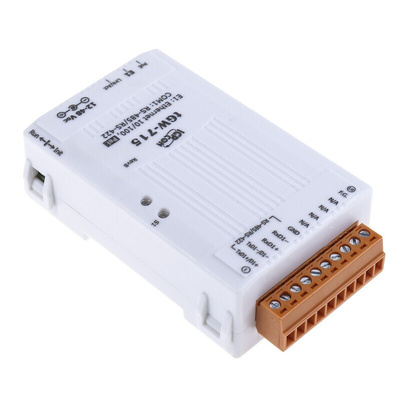

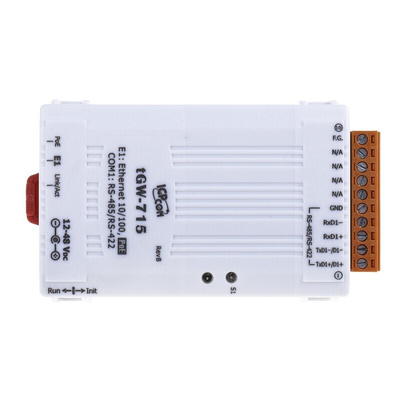

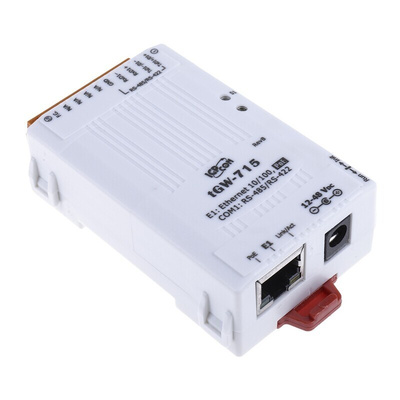

The ICP DAS USA Profinet gateway is a tiny Modbus TCP to Modbus RTU/ASCII gateway. It enables a Modbus TCP master to communicate with Modbus RTU/ASCII serial devices through Ethernet network that eliminates the cable length limitation of serial devices. It can route data over TCP/IP between two Modbus RTU/ASCII serial devices that are useful when connecting mainframe PC's, servers or serial devices that communicate over Modbus RTU/ASCII protocols but do not have Ethernet capability. It also has a built-in web server that provides an easy web interface that allows users to modify the configuration of the module on a web page, including the DHCP/Static IP, the gateway/mask settings and the serial port settings.

Features and Benefits

1 Ethernet port (10/100 Base-TX), 1 RS-485/RS-422 port
Supports Modbus TCP masters and slaves
Supports Modbus RTU/ASCII masters and slaves
32-bit microcontroller (MCU) that efficiently handles network traffic
Redundant power inputs: PoE (IEEE 802.3af, class 1) and DC jack (12 ∼ 48 VDC)
Allows automatic RS-485 direction control
Supports TCP, UDP, HTTP, DHCP, BOOTP, and TFTP protocols
Supports UDP responder for easy device search
Allows easy firmware update via Ethernet
Web server for easy configuration
Male DB-9 or terminal block connector for easy wiring
Supply voltage 12VDC to 48VDC
Made from fire retardant materials
Tiny form-factor and low power consumption
Static IP or DHCP network configuration
Cost-effective
Space-saving

Applications

Factory automation
Building automation
Home automation
Remote diagnosis and management

Certifications

UL94 approved
