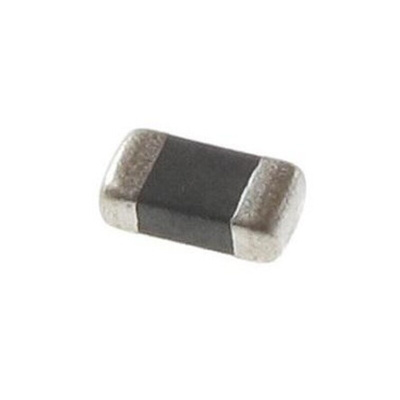

BLM21PG300SH1D, Murata Ferrite Bead (Chip Bead), 2 x 1.25 x 0.85mm (0805 (2012M)), 30Ω impedance at 100 MHz, Ферритовая шайба

SMD 0805 Ferrite Filters- BLM21P Series

BLM series ferrite beads from Murata do not require a ground connection and are ideal for use in circuits with unstable ground lines. At noise frequencies, these ferrite beads are designed to function nearly as resistors, leaving signal wave forms undistorted and reducing the possibility of resonance. The nickel barrier construction of the external electrodes enables excellent solder heat resistance. Filters composed of ferrite pearl inductance are designed to remove EMI from continuous voltage lines.

BLM_P ferrite beads have low DC resistance, making them ideal for high current circuits.

This series of ferrite beads are designed for general use applications.

Murata EMIFIL Inductor Type Chip Ferrite Beads BLM21P Series Datasheet
