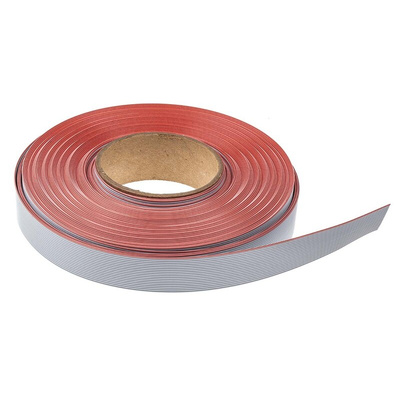

3365-20 100FT, 3M 3365 Series Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 30m Length, Ленточный кабель

0.05in (1.27mm) Pitch Ribbon Cables-Type 3365

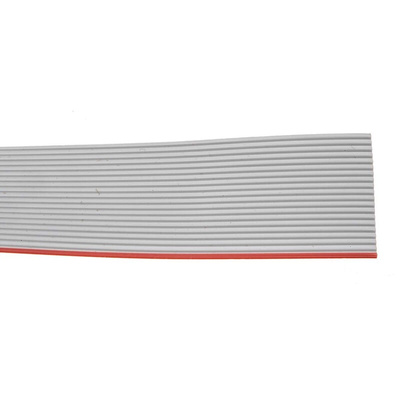

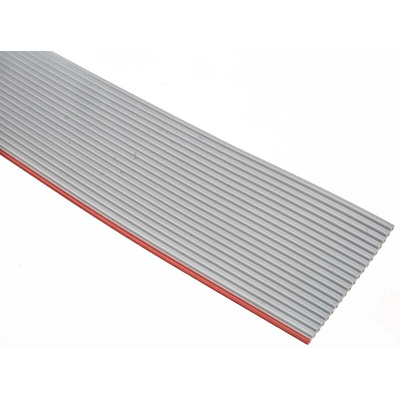

From 3M, the 3365 series of grey ribbon cable, 28 awg wire on 0.05in. centres, permits mass termination to a broad line of 3M IDC connectors. The 7x36 tinned stranded copper wire provides flexibility and extended product life. First conductor is identified by a red leading edge.

Features and Benefits

• Insulation resistance >1x10¹⁰ Ω/3m
• Suitable for mass termination
• Highly flexible

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

3M Ribbon Cable, 7 Strands, 28AWG - 3365 Series - 3365-20 100FT

Searching for a reliable way to link up your electronic system? Tie it all together with this ribbon cable from 3M. Its space-saving flat shape makes it ideal for connecting internal peripherals like hard drives, video cards and USB ports. The ultra-thin ribbon cable is made up of 20 seven-stranded conductors, each positioned side by side and with a 1.27mm pitch. Installation is fuss-free, as the flexible design is suitable for mass termination to a broad line of 3M IDC connectors.

Features & Benefits

• Colour-coded leading edges make it easy to identify the first conductor for faster termination
• Broad operating temperature range between -20°C and +105°C means it performs in demanding conditions
• Characteristic impedance of 172Ω ensures reliable data transmission

Applications

• Consumer electronics
• Robotics engineering
• Hard drive wiring

What size are this ribbon cable's wire strands?

The wires are a standard 28AWG size, making them widely compatible with standard electronic components.

Approvals

UL; CSA

Ribbon Cable Information

Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.

Round conductor flat cable 3365 series
