3302-64, 3M 3302 Series Flat Ribbon Cable, 64-Way, 1.27mm Pitch, 30m Length, Ленточный кабель

3M 0.05in (1.27mm) Pitch Ribbon Cables - Type 3302

From 3M, the 3302 series of ribbon cable permits mass termination to a broad line of 3M IDC connectors. The stranded copper wire provides flexibility and extended product life.

Features and Benefits

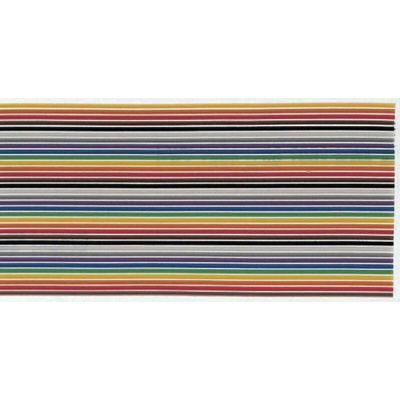

The 3302 series of 10 colour repeat clear carrier colour coded ribbon cable, 28 awg wire on 0·05in. centres, permits mass termination to a broad line of 3M IDC connectors.
Stranded wire provides flexibility and extended product life.
Insulation resistance >x10⁹Ω/3m.

Connector to cable compatibility

This cable is particularly suitable for a range of dedicated 3M IDC connectors. The following are typical of the range of 3M connectors: stock nos. 323-7845 and 121-0040.

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

3M Ribbon Cable, 81.28mm Width, 7 Strands - 3302 Series - 3302-64

To keep data flowing between devices, grab this unscreened flat ribbon cable from 3M. It provides an efficient solution when you need mass termination with a line of connectors. You'll find a row of 64 side-by-side conductors, each made up of 7-stranded 28AWG wire. Getting the right fit between the pin and terminal is easy, thanks to the cable's colour coding. A slim and flexible PVC sheath means this cable stands up to wear and contamination to deliver an extended service life.

Features & Benefits

• Tinned copper conductors support reliable data flow
• Performs reliably in a broad operating temperature range between -20°C and +105°C without cracking or melting
• Zippable design lets you branch out and make customised connections

Applications

• Audio equipment
• Computer networks
• Industrial automation

What pitch does the cable have?

The pitch of each strand is just 1.27mm, making this a versatile choice that's widely compatible with standard connectors.

Approvals

UL; CSA

Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.

Datasheet

Contains SVHC - Trixylyl phosphate - CAS No. 25155-23-1

Color Coded Flat Cable Datasheet

Cable Selection Guide
