DPM 160S, Lascar Digital Voltmeter DC, LCD Display 4.5-Digits ±1 %, 57 x 27 mm, Вольтметр

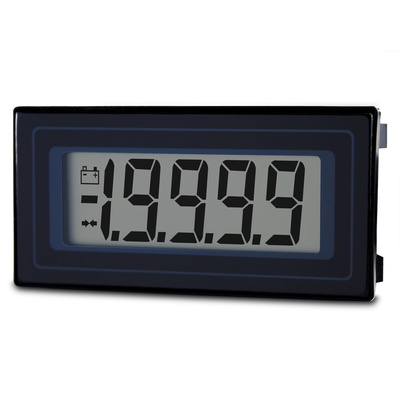

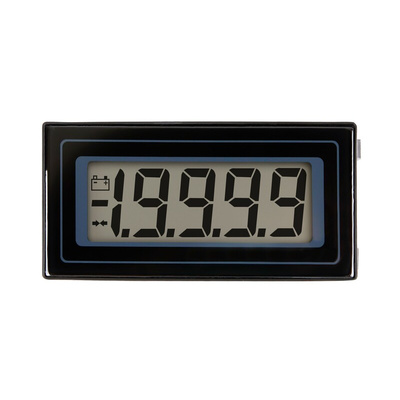

Lascar Digital Voltmeter

The Lascar digital voltmeter is a compact instrument that offers outstanding performance at low current consumption. The automatic low battery indication and continuity flags are built into the display. The device will suit many applications calling for low-cost high accuracy measurements in portable instruments. Its full-scale reading is 200mVDC or 2VDC and supply voltage ranging between 6VDC and 14VDC.

Features and Benefits

Digit height is 12.5mm (0.5in)
Programmable decimal points
Auto-zero
Auto-polarity
Digital hold
Single rail version (DPM 160S)
Auto ranging outputs
Operating temperature ranging between 0°C and 50°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

DPM160 4.5 Digit LCD Module User Manual

Datasheet
