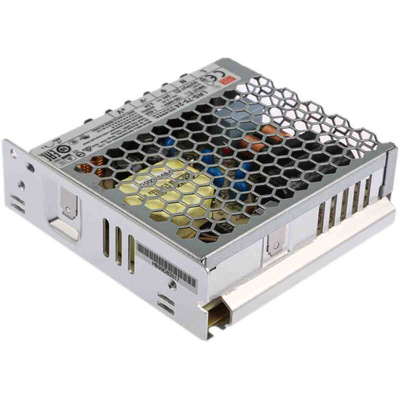

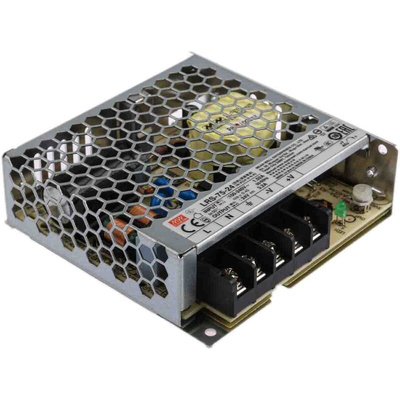

MEAN WELL Switching Power Supply, LRS-75-24, 24V dc, 3.2A, 76.8W, 1 Output, 120 → 373 V dc, 85 → 264 V ac, Источник питания

Mean Well Power Switch Mode Power Supply

The Mean Well LRS-75 series 76.8W single output AC to DC enclosed switch mode power supply has an output current rating of 3.2A at 24VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC/120VDC to 373VDC. The device provides a metallic meshing and air convection to ensure optimum heat dissipation. This power supply can deliver an extremely low no-load power consumption. The power supply meets anti-vibration demand up to 5G capability and makes it ideal for installing in testing environments.

Features and Benefits

Free air convection cooling
High reliability
Highly efficient enclosed
Low profile
Operating altitude up to 5000m
Surge input is 300VAC with a duration of 5 second
Up to 91.5% efficiency rating, with less than 0.3W no load power consumption
Vibration resistance is 5G

Applications

Control machinery
Electrical equipment
Household appliances
Industrial automation
Mechanical

Certifications

EN60335-1
EN60950-1
EN61558-1/-2-16
GB4943
UL60950-1

Mean Well LRS-75 Series Datasheet
