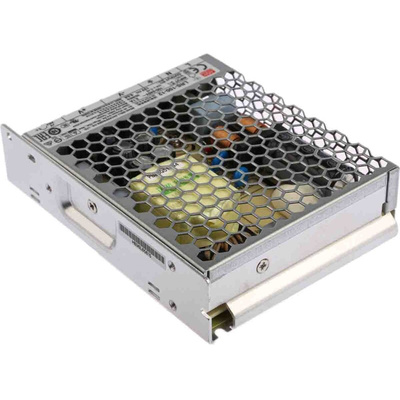

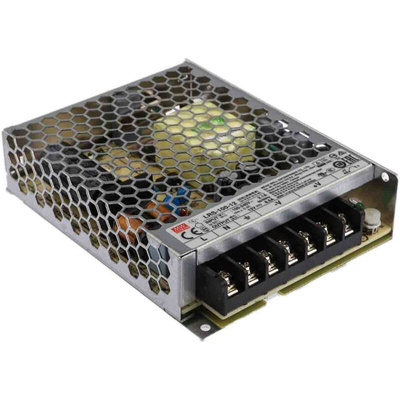

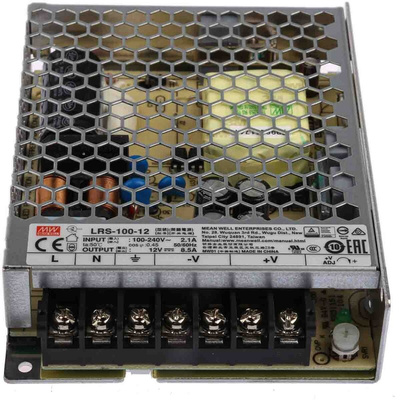

MEAN WELL Switching Power Supply, LRS-100-12RS, 12V dc, 8.5A, 102W, 1 Output, 120 → 373 V dc, 85 → 264 V, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well LRS-100 series 102W single output AC to DC enclosed switch mode power supply has an output current rating of 8.5A at 12VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC and 120VDC to 373VDC. It provides a metallic meshing and air convection to ensure optimum heat dissipation. The power supply can deliver an extremely low, no-load power consumption. The power supply meets anti-vibration demand up to 5G capability and makes it ideal for installing in testing environments.

Features and Benefits

Low profile
Highly efficient enclosed
Surge input is 300VAC with a 5 second duration
Up to 88% efficiency rating, with less than 0.3W no load power consumption
Vibration resistance is 5G
Free air convection cooling
Operating altitude up to 5000m
High reliability

Applications

Industrial automation
Control machinery
Mechanical
Electrical equipment
Household appliances

Certifications

EN60950-1
EN60335-1
EN61558-1/ -2-16
UL60950-1
GB4943

Mean Well LRS-100 Series Datasheet
