MEAN WELL Switching Power Supply, HEP-100-24A, 24V dc, 4A, 96W, 1 Output, 127 → 431 V dc, 90 → 305 V ac, Источник питания

Mean Well Embedded Switch Mode Power Supply

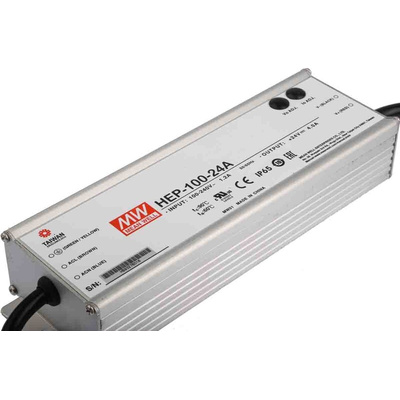

The Mean Well HEP-100 series 96W single output AC to DC embedded switch mode power supply has an output current rating of 4A at 24VDC. It has a universal input supply voltage rating ranging from 90VAC to 305VAC/127VDC to 431VDC. This device can perform under extreme conditions such as high humidity, dusty oily and high-vibration environments. It is constructed of an aluminium casing and the interior is fully potted with heat-conducted silicone.

Features and Benefits

Withstands 10G vibration tests
Cooling achieved by a free air convection design
Surge immunity level 6KV
Efficiency of up to 93%
Operating temperature ranges between -55°C and 70°C under free air convection cooling
Built-in active PFC function
Fanless design, cooling by the free air convention
Protections from short circuit, overload, overvoltage and over temperature
Operating altitude up to 5000m
V and I level can be adjusted through internal potentiometer

Applications

Outdoor telecommunication equipment installation
External signage and billboard
Mining and petroleum installations

Certifications

UL60950-1
EN60950-1
EN55022 class B
EN61000-3-2,-3
EN61000-4-2,3,4,5,6,8,11
EN55024
IP65
IP68 (optional)

Mean Well HEP-100 Series Datasheet
