RS PRO 1956mm Synthetic Rubber Hydraulic Hose Assembly, 275bar Max Pressure, Сборка

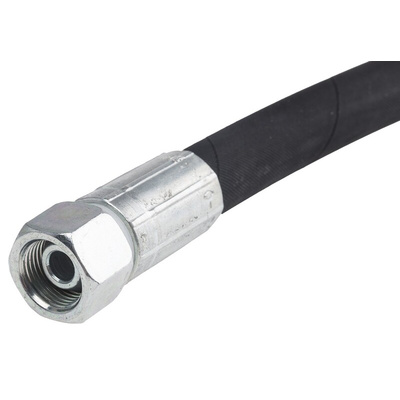

RS PRO 1956 mm Synthetic Rubber Hydraulic Hose Assembly, 275 Bar Max Pressure

This durable hydraulic hose assembly from RS PRO is designed for use with water-glycol hydraulic fluids, as well as mineral and lubricating oils. The synthetic rubber outer cover is reinforced with high-tensile steel wire for added strength and resistance to corrosion.


You can use this hose at temperatures between -40°C and +100°C, so it's a good choice for demanding settings such as hot manufacturing plants and cold storage units. As it complies with Restriction of Hazardous Substances (RoHS) standards, it contains only trace levels of any harmful materials. You'll commonly find this type of hydraulic hose assembly used for fluid transfer between tanks, or as an oil-delivery system in construction equipment.

Features and Benefits

• Overall length of 1956 mm


• Straight female G threads on connectors A and B


• Connectors A and B thread size of 1/2 in


• Inner hose and cover made of synthetic rubber


• Maximum operating pressure of 275 bar


• Operating temperature range of -40°C to +100°C


• Steel reinforcing material

RS Pro Datasheet
