RS PRO 1000mm Galvanized Steel Wire Hydraulic Hose Assembly, 190bar Max Pressure, Сборка

RS PRO 1000 mm Galvanized Steel Wire Hydraulic Hose Assembly, 190 bar Max Pressure

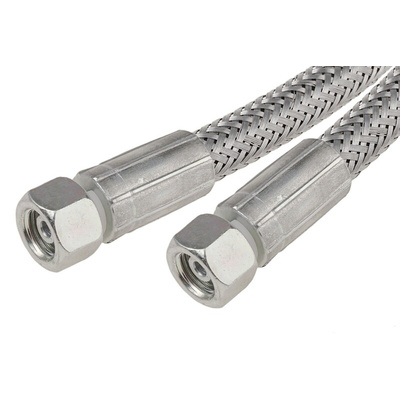

This hose from RS PRO allows fluid connections to be made between existing pieces of equipment. The internal hose is made from synthetic rubber, ensuring that both water and oil-based fluids (including emulsions) can be transported without damage to the hose. The internal hose is covered by a weave of galvanised steel wire, protecting it from piercing and slashing damage and helping to reduce the chance of hose kinks which would prevent flow.
The ends of the hose have built-in captive nuts, making them easy to screw into place and ensuring that there are no extra parts that could get lost or accidentally swapped with a different design of hose. The female connectors on both ends mean that this hose is suitable for connecting two units directly together with no adaptors required. It would typically be used to carry the fluids for hydraulic systems.

Features and Benefits

• Straight G 1/4 Female connector a
• Connector A is a straight-angled, female connector
• Connector A has a thread size of 1/4 in
• Thread standard of connector A is G
• Connector B is a straight-angled female connector
• Connector B has a thread size of 1/4 in
• Thread standard of connector A is G
• Galvanized steel wire cover material
• Synthetic rubber inner hose material
• Inside diameter of 1/4 in
• Maximum operating pressure of 190 bar
• Operating temperature range of -40°C to +121°C
• Overall length of 1000 mm
• Steel reinforcing material
