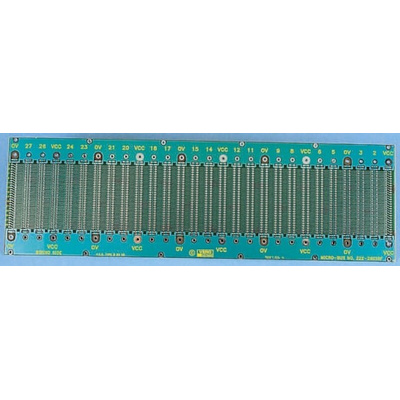

RS PRO 64, 96 Way DIN 41612 Eurocard Motherboard FR4 Single Sided 84HP With 20.32mm Connector Pitch

Microbus with earth plane

This Microbus is designed for use with DIN 41612 64 // 96 or 96 // 96 connectors.
Pins 1 and 32 on rows a and l are for 0 V with full 0 V display panel on one side of the plate. Pins 2 and 31 on rows a and c are for Vdc, which therefore clears 56 separate signalling lines.
The width of the plate is from 42 → 84 E.
The female 64 // 96 and 96 // 96 solder or wrap connectors are ordered separately.
High reliability thanks to the metal holes.
Minimum crosstalk.
DIN 41494 (KM6-II) compatible.
Protective lacquer to prevent solder bridges.

PC / VME Bus Boards

PC Compatible Prototyping Boards

Prototyping boards manufactured from epoxy glass material to BS 4584 part 3 or 16. Card thickness is 1.6 mm. Copper is 305 g/m² (1 oz/ft²). Edge connector fingers are gold plated to a thickness of 1.5 microns. 1.0 mm (0.040 in.). Diameter holes are pre-drilled on a 2.54 mm (0.1 in.) matrix.

Microboard Pattern

Incorporates, on the component side of the card, a colander ground plane for maximum screening and glitch free high speed operation, and complete solder mask protection.
