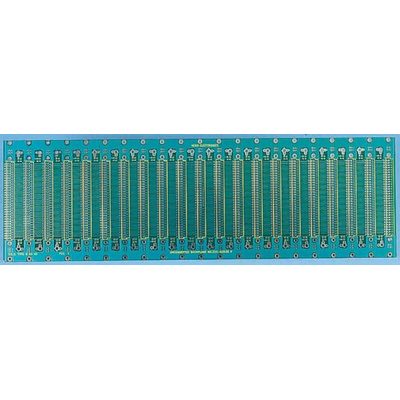

222-63631, Vero Technologies 96 Way M3 Stud Faston Eurocard Backplane FR4 Double Sided 25.3HP With 20.32mm Connector Pitch

Nut Plates, Double-Sided

This series of nut plates is designed to give technicians the ability to fine-tune the backplane to the requirements of their system. Each hole is a through-hole and the connector can be wired to series B as OV to prevent cross-talk on series A and B.
The power supply is via M3 screws or 6.3 mm Faston connectors. The voltage supply to pins 1, 2, 31 and 32 is via 2.54 mm bridges. Series A, B and C can be connected using connecting strips in order to be able to supply one series with the same voltage.
The end of these connecting strips is then inserted into a through-hole where this voltage is available.
Backplane bare — please order connectors separately.

Datasheet - 222-6363
