RS PRO 2000mm Galvanized Steel Wire Hydraulic Hose Assembly, 140bar Max Pressure, Сборка

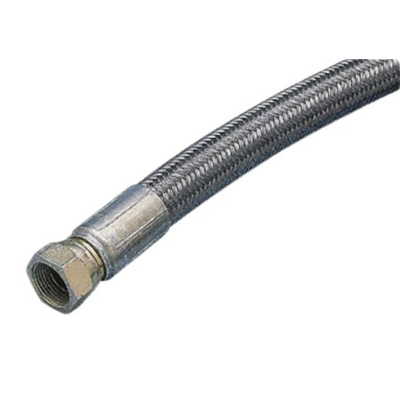

RS PRO 2000 mm Galvanized Steel Wire Hydraulic Hose Assembly, 140 bar Max Pressure

If you need to transport oil-based fluids or emulsions without damaging your equipment, choose this hydraulic hose assembly from RS PRO. It has two female end connectors, so you can link it to existing equipment without the need for adaptors.


This durable product features an internal hose made of synthetic rubber that's resistant to chemicals for use in harsh environments. The galvanised steel wire sheath protects the hose from piercing and slashing damage and prevents kinks to ensure good flow.


The two hose ends have built-in captive nuts, meaning there are no extra parts to lose or mix up with other components. Hose assemblies like this one are typically used to carry fluids in hydraulic systems.

Features and Benefits

• Connector A is a straight-angled, G 1/2 female connector


• Connector B is a straight-angled G 1/2 female connector


• Galvanized steel wire cover material


• Synthetic rubber inner hose material


• Inside diameter of 1/2 in


• Maximum operating pressure of 140 bar


• Operating temperature range of -40°C to +121°C


• Overall length of 2000 mm


• Steel reinforcing material
