121085 M22-XAK11, Eaton Legend Plate for Use with M22 Series Modular Push Buttons, Arrêt d'urgence - Emergency Stop - Arresto di

Eaton RMQ Titan Label For Use With Modular Push Buttons, Round, Yellow - RMQ-Titan / M22 Series - 121085 M22-XAK11

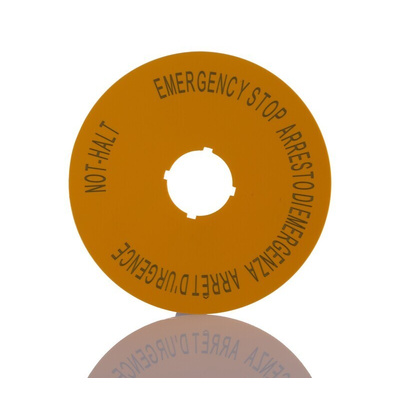

Need an eye-catching label for your emergency stop push button? Choose this legend plate from Eaton. It's easy to install and delivers a secure fit, thanks to a hole in the middle that slots over the neck of the button. As the label is bright yellow, the black 'emergency stop' lettering stands out prominently and is easy to read. Compatibility with push buttons in Eaton's modular M22 series makes this a highly versatile option. You'll find it commonly used everywhere from process control engineering to alarm devices and low-voltage switch technology.

Features & Benefits

• IP66 rating indicates it's dust-tight and protected from high-pressure water jets from any direction
• Wide operating temperature range between -25°C and +70°C allows for use in challenging environments
• Labelled in German, English, French and Italian languages to help prevent the button from being pushed in error

What are the dimensions of this label?

This ring-shaped label has an outer diameter of 90mm to fit most standard push buttons. Its central hole slots around push buttons with 22.5mm drilling dimensions.

Note

Eaton formerly known as Moeller
