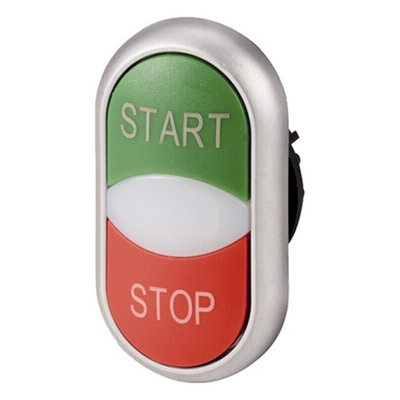

216702 M22-DDL-GR-GB1/GB0, Eaton RMQ Titan M22 Series Green, Red Illuminated Momentary Push Button, 22mm Cutout, IP66

Eaton RMQ Titan Push Button, Start/Stop Actuator, 54.7mm Button Diameter - RMQ-Titan / M22 Series - 216702 M22-DDL-GR-GB1/GB0

To add an intuitive control for your machine, choose this push button from Eaton. Pressing the green section switches the attached unit on, while the red section turns it off. The unit comes with a white lens, which can be illuminated by a light module to give a real-time status indication for the attached component. The push button head is supplied as a single unit for easy assembly and installation. You'll typically find buttons like this controlling industrial machinery and manufacturing applications.

Features & Benefits

• Wide operating temperature range between -25°C and +70°C for use in demanding environments
• Mechanical lifespan of over 200,000 operational cycles to deliver an extended service life
• IP66 rating means it's dust-tight and protected against high-pressure water jets
• Titanium bezel for enhanced durability and reliable service

How do I install this unit?

This device has a standard cutout diameter of 22mm for easy panel mounting. To simplify wiring, the connections are compatible with Eaton's intelligent SmartWire-DT wiring system.

What's the difference between an emergency stop button and a general-use button?

Emergency stop buttons are specifically designed as safety measures, while general-use buttons are used to control the everyday operation of a machine, including start/stop functions, or to switch modes.

Note

Eaton formerly known as Moeller
