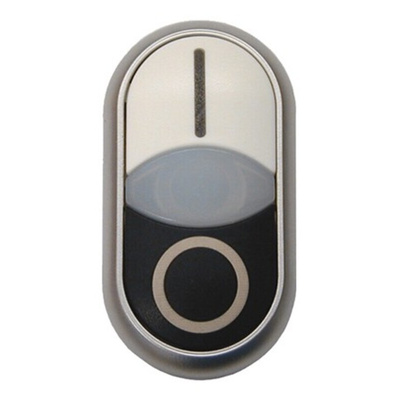

216706 M22-DDL-WS-X1/X0, Eaton RMQ Titan M22 Series Black, White Illuminated Momentary Push Button, 22mm Cutout, IP66

Eaton RMQ Titan Push Button, 54.7mm Push Button Diameter, IP66 Rating - RMQ-Titan / M22 Series - 216706 M22-DDL-WS-X1/X0

Crank your level of control up a notch with this extended-style push button from Eaton. Two command positions clearly indicate 'on' and 'off', making this an ideal option for automation and processing tasks. Its flat design ensures a low profile that won't get in the way, so you don't need to be picky about where you place it. Even in dark spaces, you can rely on this product to shine, as it comes with built-in illumination. Durability is brought to the party by a titanium bezel that offers resilience to mechanical stress.

• IP66 rating means that it's completely dust-tight and resists low-power water jets from all directions
• Lifespan of 200,000 mechanical operations for a high work rate
• Compact front dimensions of 29.7 (W) x 54.7mm (H) mean it saves space in your setup
• Less than 5N of force is needed to actuate the mechanism, so a light-touch is all that's needed

Is this push button suitable for use in harsh environments?

Yes. The operating temperature range of this unit is between -25°C and +70°C, so it's ideal for use in demanding conditions.

Note

Eaton formerly known as Moeller

EATON DS

Brochure - Industrial Grade Control and Signaling

Instruction Sheet - M22 Series
