216710 M22-DDL-S-X7/X7, Eaton RMQ Titan M22 Series Black Momentary Push Button, 22mm Cutout, IP66

Eaton Double Push Button Heads - M22 Series

The RMQ-Titan M22 series from Eaton offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push-buttons including LED elements, selector switches, key switches, push-pulls, alternate action and turn-to-release operators.

This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes in automation and control environments. Designed for optimal functionality with a high degree of protection this range offers a wide range of solutions for your business

This professional range of double push switch actuators from Eaton has a momentary double push action and incorporate a titanium front ring. The actuators are IP66 rated.

Features and Benefits

• 22.5 mm cutout diameter
• Mechanical lifespan of over 100,000 operations
• Operating temperature of -25 to +70°C
• Low profile plastic design gives this control switch an attractive modern look and feel
• The high degrees of protection in the front (up to IP69K) and at the back (IP65) of these devices make the perfect choice for applications in which oil-tight protection from dirt or liquids is required.
• The push button head is supplied as a single unit, enabling easy installation for worldwide applications
• Modular M22 series features adaptable functionalities
• Tamper proof in compliance with EN ISO 13850
• IP67/IP69 rated

What is the difference between a push button for emergency stop and a general-purpose push button?

A general-purpose push button switch is used for controls, e.g., starting machine operation or simply switching modes. However, a push button switch for emergency stop is mainly used as a safety measure to stop hazardous events.

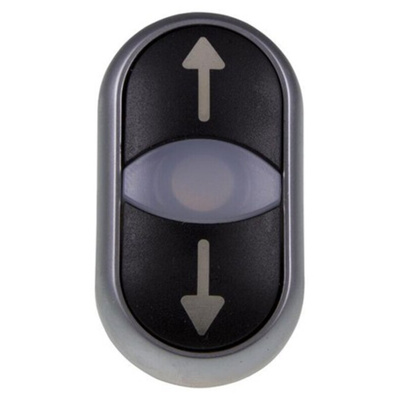

Eaton RMQ Titan Extended Black Push Button, Momentary, 22mm Cutout - RMQ-Titan / M22 Series - M22-DDL-S-X7/X7

This momentary push button from Eaton is an effective and simple switch mechanism that allows you to control one aspect of a machine or a device. You can use it to keep your machines, systems and industrial processes in automation and control environments running smoothly. This actuator has an up and down button that lets you switch operations on and off or alter the strengths or speeds at which an application should run.

• Plastic casing carries IP67 (ingress protection) rating and protects against water damage and dust particles
• Mechanical lifespan of more than 100,000 operations makes it economical and long-lasting
• Functional in temperatures ranging from -25°C to +70°C, for use in harsh environments

What's the difference between a maintained switch and a momentary push button?

A maintained switch changes position when it's actuated (pressed). It stays in the same position until it's pressed again, like the switches used on lights. A momentary push button only performs the required function when it's actuated and while the operator holds it down. Examples include the push buttons used in doorbells and those that change settings on devices.

Note

Eaton formerly known as Moeller

Datasheet - Eaton M22-DDL-S-X7/X7
