218173 M22-XD-S-X7, Eaton Button Plate for Use with M22 Series Modular Push Buttons, Up Arrow

Eaton Push Button Cap, Black and White Colours, Round Shape - M22 Series - 218173 M22-XD-S-X7

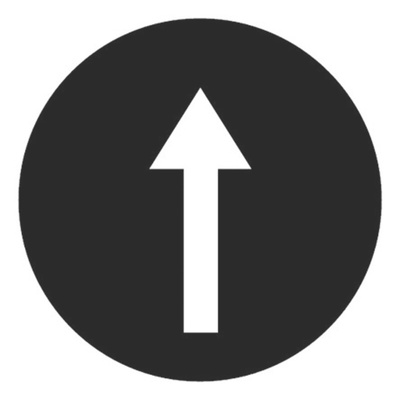

Want a way to identify the job your push button does at a glance? This cap from Eaton is a quick and easy solution for labelling your unit. It has a white 'up' arrow against a black background, so it's a convenient choice for applications such as lift or ramp movements, temperature increases or scrolling motions. The plate uses a symbol instead of text as it's faster to recognise and means there's no language barrier to overcome. It's a hardy option that handles demanding temperatures between -25°C and +70°C without suffering damage.

Features & Benefits

• Compact dimensions of 22.5 (outer diameter) x 3mm (height) mean it's a space-efficient choice
• Flat design achieves a flush profile to minimise snagging
• Round shape fits seamlessly with 22mm-diameter push buttons

How much does this unit weigh?

This cap is designed to be lightweight, with a mass of just 2g, so it doesn't add any load to your setup.

What buttons can I use this cap with?

This cap pairs with buttons from Eaton's M22 series (such as 110-4507, 272-2171 and 446-5316), so it's widely compatible.

Note

Eaton formerly known as Moeller
