RS PRO Die Cast Zinc Butt Hinge Screw, 50mm x 50mm x 12mm, Петля

RS Pro Zinc Surface Mount Hinges

The RS Pro diecast zinc surface mount hinges have been designed for permanently mounting your installations. The fixed pin hinges can be used in many different types of applications such as electrical panels or heating and ventilation applications.

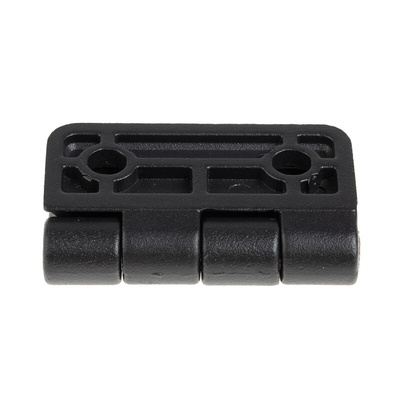

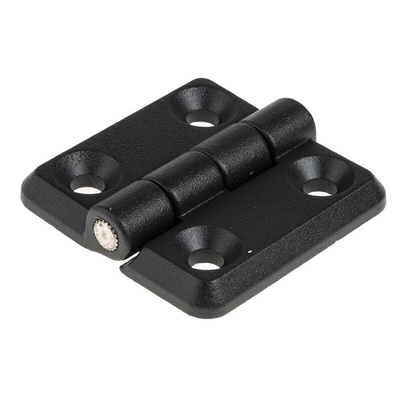

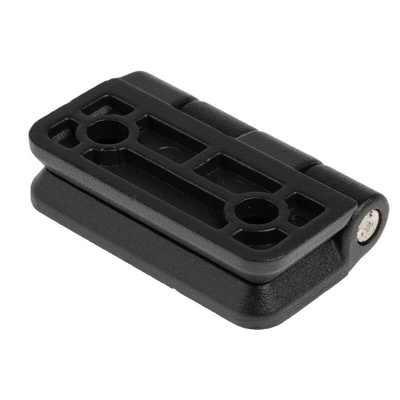

RS PRO Powder-coated Die-cast Zinc Butt Hinge Screw, 50 mm x 50 mm x 12 mm

These fixed-pin aluminium butt hinges use a simple design that incorporates reliability and toughness in a compact package. They're part of our stringently tested RS PRO series.

They're made from 12 mm thick die-cast zinc. This lightweight material is stronger and harder than comparable alloys at room temperature. Die-cast zinc can also withstand high operating temperatures and has good corrosion resistance. For a premium-quality, durable finish, these hinges are powder coated. This gives them an attractive finish so they can also be used as a design element. They come in a space-saving 50 x 50 mm design with pre-drilled holes for quick and easy mounting.

The hinges conform to the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards, for protection from damage due to electrostatic discharge. They're a good choice for more demanding environments and heavy-duty applications, such as in electrical panels or heating and ventilation systems.

Features and Benefits

• Butt hinges made from die-cast zinc
• Free swinging
• Length of 50 mm
• Width of 50 mm
• Material thickness of 12 mm
• Screw fixing
• Powder-coated
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
