HTS221TR, STMicroelectronics Temperature & Humidity Sensor, Digital Output, Surface Mount, Analogue, ± 0.5 °C, ± 3.5%, 6 Pins, Датчик температуры и влажности

HTS221 Humidity and Temperature Capacitive Digital Sensor, STMicroelectronics

The HTS221 is a compact relative humidity and temperature sensor. It includes a polymer dielectric planar capacitor structure sensing element and a mixed signal ASIC to provide the measurement information through digital serial interfaces.

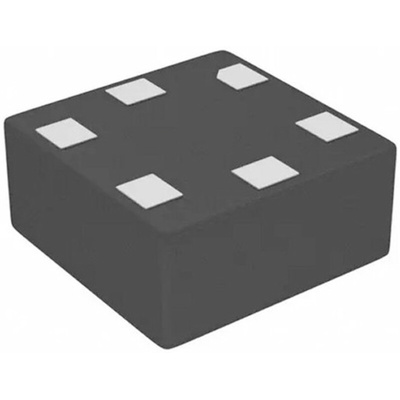

HTS221 is available in a small top-holed cap land grid array (HLGA) package, guaranteed to operate over a temperature range from -40°C up to +120°C. It has many uses but some of the main uses include: Air conditioning, heating, ventilation, air humidifiers, refrigerators, wearable devices, smart home products, industrial automation, respiratory equipment and asset tracking. The HS221 also comes pre-calibrated straight from the factory.

Features –
•Tiny 2x2x0.9 mm design
•SPI and I²C interfaces
•16-bit humidity and temperature data output
•Low power consumption: 2 μA @ 1 Hz ODR
•Selectable ODR from 1 Hz to 12.5 Hz
•High rH sensitivity: 0.004% rH/LSB
•Humidity accuracy: ± 3.5% rH, 20 to +80% rH
•Temperature accuracy: ± 0.5 °C 15 to +40 °C
•0% to 100% relative humidity range with high sensitivity
•1.7V to 3.6V supply voltage

Temperature & Humidity Sensors, STMicroelectronics

HTS221, Capacitive Digital Sensor for Relative Humidity and Temperature
