1181/9.5, 3M 1181 Conductive Metallic Tape, 9.5mm x 16m, Медная лента

3M Copper Tapes

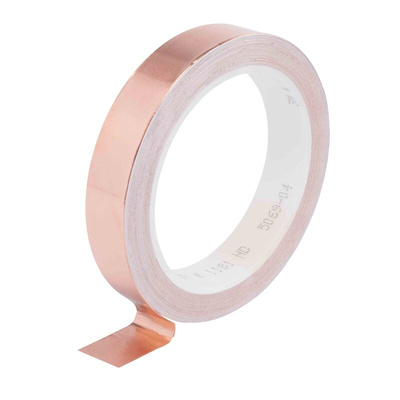

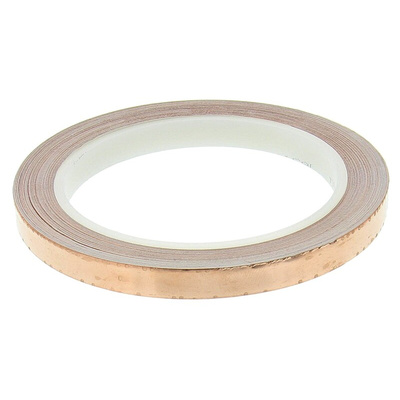

The 3M copper tape consists of 1-ounce dead soft copper foil backing and unique electrically conductive pressure-sensitive acrylic adhesive. This tape is 0.07mm thick, 9.5mm wide and 16m long. This smooth copper tape is coated on one side with conductive acrylic adhesive.
EMI/RFI shielding tapes:
When using this tape, galvanic compatibility should be taken into account.

Features and Benefits

• Conduct electricity and can be soldered
• Adhesion strength is 3.8N/cm
• Breaking load is 44N/10mm
• Backing thickness is 0.04mm
• Protection against EMI and RFI interference
• Supplied on a removable liner for easy handling and die-cutting
• Operating temperature ranges between -20°C and 155°C

Applications

• Designed for electromagnetic or radio-electrical shielding
• Suitable for soldering
• Grounding and EMI shielding in equipment components and shielded rooms

Why choose 3M?

3M are a trusted name in tapes and adhesives. Whether for industrial or even domestic applications, 3M has a tape to suit your needs. From automotive masking to office supplies, 3M tapes are relied on by millions to get the job done. RS supplies a wide range of quality 3M tapes to suit the needs of the most discerning customer.

1181 Tape Copper Foil with Conductive Adhesive Data Sheet
