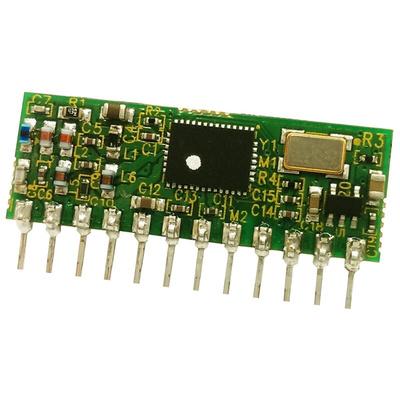

KAPPA-T868 Radio Telemetry Module

The KAPPA-T868 module is a sub-1GHz RF telemetry receiver with a UART serial interface. It is set up to receive data from remote-control transmitters with up to 16 buttons.

RF Carrier Frequency: 869.5MHz ISM Band
RF Power Output: +13dBm
Modulation: FSK
Receiver Sensitivity: -121dBm
OTA Data Rate: 19200bps
Range: up to 500m (line of sight)
Secure Data Protocol
4 x button-press outputs
Serial UART output of all data
Connector for Learn/RF Activity LED
Learn switch input
One-to-One pairing with up to 70 transmitters
Transmitter battery status output
Self-test mode
Power supply: +1.8V to +3.6Vdc
Operating temperature range: -20 to +55°C
Dimensions: 31.5 x 11 x 2.5mm
Applications: Remote control, Digital telemetry

RS Product Codes
111-0161 KAPPA-T868 SIL format
111-0162 KAPPA-T868-SO SMT format

Note

The KAPPA telemetry module is fully-compatible with RF Solutions' SABRE & ELITE series of hand-held transmitter modules.

Approvals

EN300-220
