Tempo FI100 Fibre Optic Fibre Optic Test Kit

Fibre Optic Test Equipment

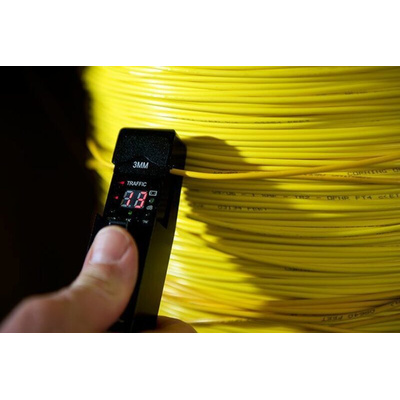

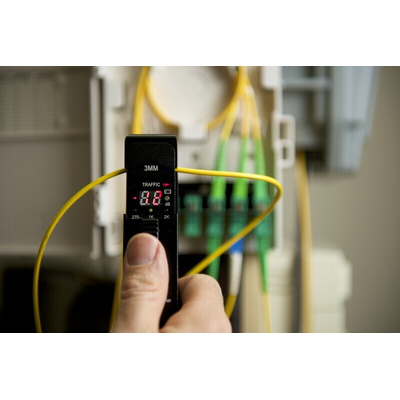

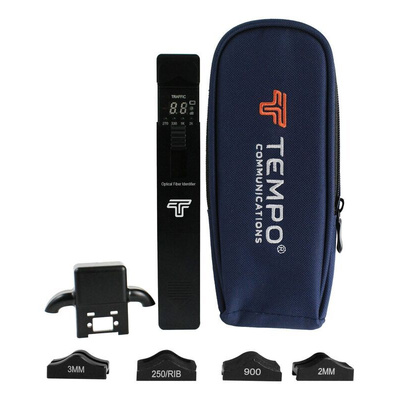

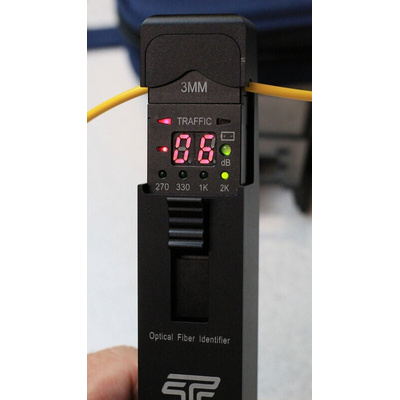

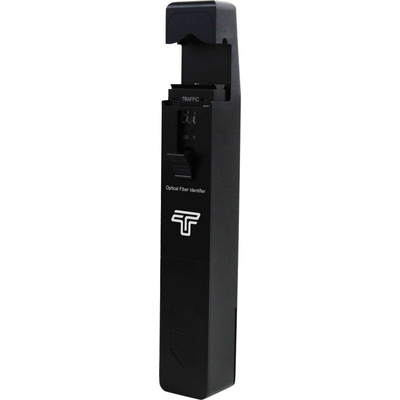

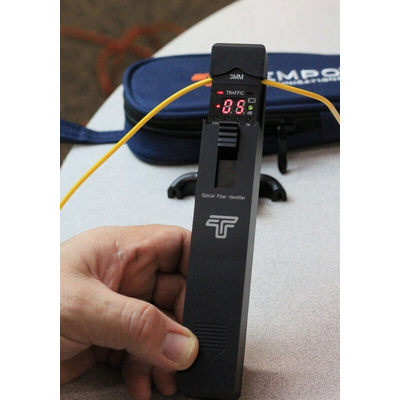

The FI-100 fibre optic test equipment has a maximum output power of 10dB. This test equipment can quickly identify the direction of the transmitted fibre and display the relative core power without interrupting the current service. This device detects modulations of 270 Hz, 1kHz and 2kHz with an audible tone and LED indication. It is supplied with an optical fibre identifier, set of adapter heads, AAA batteries x 2, instruction manual, soft carry bag and sun shield.

Features and Benefits

Range of wavelength is between 800nm and 1700nm
Non-intrusive low insertion loss prevents alarm conditions
Easy operation as it identifies fibre with tone detection and a clear indication of signal transmission direction
Offers versatility as it supports all the common fibres, including 250μm, 900μm, 2mm and 3mm and is able to sense light in bend insensitive fibres

Applications

Measure and locate high-loss splices, connections and breaks
Locate the end of a fibre
Find potential sources of error caused by reflectance from dirty or poor connections
Detect live optical signals before it begins testing

Certifications

CE certified
FCC certified
WEEE certified
