LXM28AU15M3X, Schneider Electric 1.5 kW Servo Drive, 170 → 255 V for 1 phase, 200 → 255 V for 3 phases, 1, 3 Phase, 10 A, Encoder

Lexium 28 IO Servo Drive

Schneider Electric Lexium 28 range AC-servo drives for combination with the BCH2 servo motors. Lexium 28 servo drives have digital and analogue I/O as standard, an interface for CANopen/CANmotion fieldbus and an encoder interface for BCH2 servo motors. The servo drives incorporate numerous functions, including auto-tuning, position, speed, torque control, and the position sequence mode.

Automatic motor identification
Status monitoring
Log function
Relative or absolute positioning mode
Velocity mode
Torque control mode

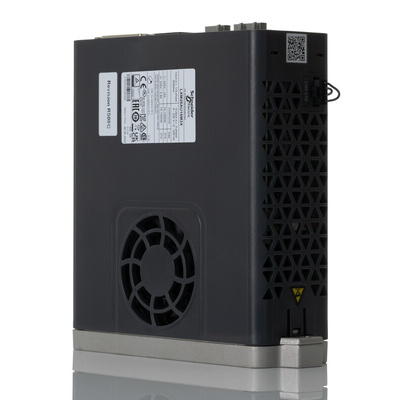

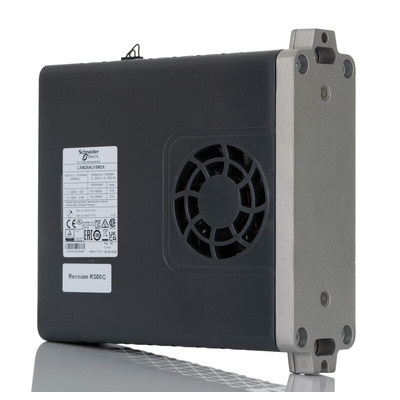

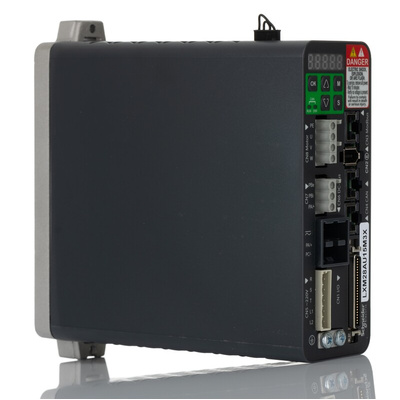

Schneider Electric Servo Drive, 7-Segment Display, 1.5kW Power Rating - LXM28AU15M3X

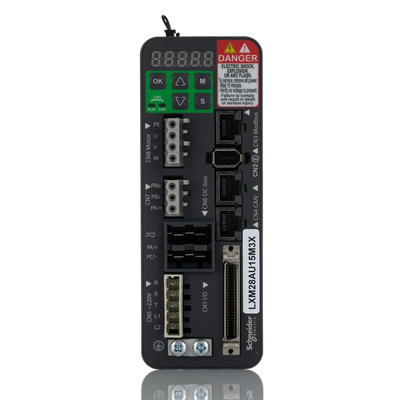

Put your motor through its paces with this servo drive from Schneider Electric. It automatically identifies your device when you connect it, saving set-up time. The versatile drive features eight programmable inputs with a seven-segment display and a five-button keypad. This gives you a user-friendly way to directly control and monitor your machines. As it's fitted with two RJ45 ports and a CANmotion interface, network and control panel integration doesn't feel like rocket science. A safe-torque-off function is embedded in the drive so it can be hooked up to safety systems to protect equipment and workers.

Features & Benefits

• Speed and torque control modes for precise motor management
• Dimensions of 150 (L) x 55 (W) x 170mm (D) save you space
• Works with single-phase and three-phase systems for flexibility
• Spring terminals grip wires tightly to prevent loosening when machine vibrations are present
• Protections from short-circuits, overheating and under-voltage are on hand to safeguard equipment

Applications

• In-line manufacturing
• Lifts and hoists
• Robotics systems
• Materials handling

What type of motor can this servo drive control?

This drive delivers 1,500W at 220V, making it a good partner for BCH2 servo motors from the Lexium 28 range.

Schneider Electric Lexium 28

The Lexium 28 range of servo drives and motors that are suitable for a wide range of positioning and precision speed control applications including, printing, packaging, winding and unwinding as well as materials handling.

The servo drives cover a wide range of power ratings from 0.05kW to 4.5kW, with two different types of power, single phase and three phase.
