Tektronix RSA306B Handheld Spectrum Analyser, 9 kHz → 6.2 GHz, Анализатор спектра

Tektronix Spectrum Analyser

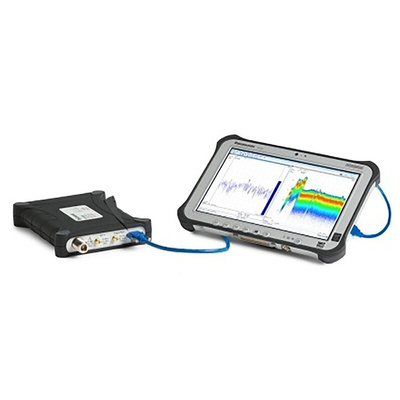

The Tektronix spectrum analyser has real-time analysis capability and it operates on a frequency ranging from 9kHz and 6.2GHz. This portable analyser is compact, lightweight and offers performance as good as a benchtop analyser. It is connectable to a PC with USB 3.0 interface and comes with SignalVu-PC signal analysis software. It is affordable and takes up little space on a bench and fits neatly in your hand, bag, pocket or tool belt.

Supplied with
USB 3.0 cable 1m, SignalVu-PC software, documentation, USB key, printed safety/installation manual.

Features and Benefits

Covers a broad range of analysis ranging between 20dBm and -160dBm measurement range
Captures interference to ensure problems every time
Mil-Std 28800 Class 2 environmental, shock and vibration specifications for use in harsh conditions
Fully featured spectrum analysis capability with included Tektronix SignalVu-PC software
Minimum event duration for 100% POI is 100μs
Real-time spectrum/spectrogram display to minimise time spent on transient and interference hunting
Application programming interface (API) included for Microsoft Windows environments
MATLAB instrument driver for use with instrument control toolbox
Streaming capture records long term events
Length is 190.5mm, width is 139.7mm and height is 31.9mm

Applications

Telecommunication
Electronics laboratories
Educational institutes
Electronics designing
Service and maintenance

Certifications

UL61010-1 approval
CAN/CSA-22.2 certified
EN61010-1
IEC61010-1
EN61000-3-2
EN61000-3-3
EN61326-2-1
EN61326–1/2
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11
