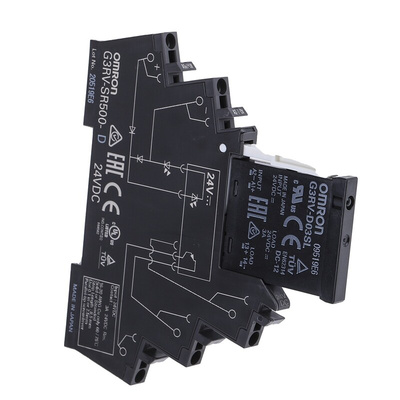

G3RV-SR500-D DC24, Omron G3RV-SR Series Solid State Interface Relay, 24 V dc Control, 3 A Load, DIN Rail Mount, Реле

G3RV-SR Slim I/O Solid State Relay

Omron G3RV-SR slim I/O solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G3RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

High frequency
High-speed opening and closing
Switching capacity up to 3 A (DC), and 2 A (AC).
LED operating status

OMRON Solid State Interface Relay, 90 (H) x 6.2 (L) x 78mm (D), DC Switching Type - G3RV-SR Series - G3RV-SR500-D DC24

Bridge the gap between your low-voltage system and high-power equipment using this solid state interface relay from OMRON. It receives input signals from devices like sensors and PLCs and then converts them from an electrical mode to an optical one. The processed signal is sent to the output circuits of high-current machinery, such as HVAC equipment. This relay has no moving internal contacts, so there's no risk of mechanical wear or contact bounce.

Features & Benefits

• Push-In Plus terminal blocks for hassle-free wiring
• LED signals enable easy status monitoring
• Built-in lever for quick locking and release
• Rapid power switching with a turn-on time of 6ms

Applications

• Automotive engineering
• Power plants
• Lighting fixtures
• Building automation

What's the difference between an SSIR and an SSR?

While an SSIR like this one transmits signals from a low-voltage source to a high-voltage output, an SSR is designed to directly switch high-current loads.

What's the release time of this relay?

A quick release time of 60ms means this relay rapidly returns to its original state after each switching.

Standards

UL 508, E64562. CE.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
