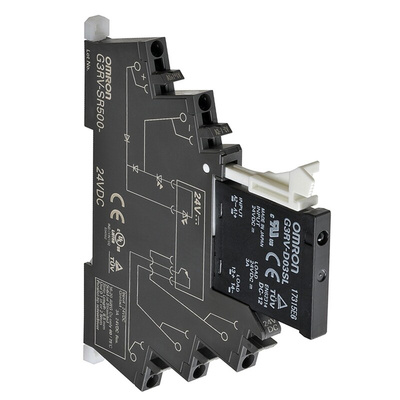

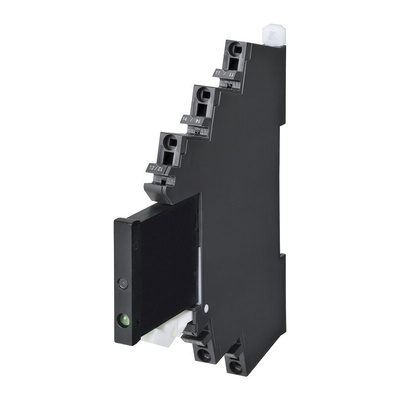

G3RV-SR500-D AC110, Omron G3RV-SR Series Solid State Interface Relay, 110 V ac Control, 3 A Load, DIN Rail Mount, Реле

G3RV-SR Slim I/O Solid State Relay

Omron G3RV-SR slim I/O solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G3RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

High frequency
High-speed opening and closing
Switching capacity up to 3 A (DC), and 2 A (AC).
LED operating status

G3RV-SR500-D AC110 – I/O Low Profile SSR - Solid State Relay 6.2 mm Wide.

•Push-In Plus terminal.
•Release lever for easy relay locking and release.
•60% Reduced wiring time.
•DC Applicable output load.
•Rated input voltage 110 V ac.
•Slim compact design.
•DC output – MOS FET.
•High frequency.
•High speed opening and closing.
•Easy wiring.

SSR – Solid State Relay Input Rating at ambient 25°C.

•Rated current AC - 6.2 mA 50 Hz, 6.2 mA 60 Hz.
•Must operate voltage 99 V max.
•Must release voltage 1 V min.
•Input voltage ±10% of rated voltage.

SSR – Solid State Relay Output.

•Rated load voltage 5 to 24 V dc.
•Load voltage range 3 to 26.4 V dc.
•Load current 100 μA to 3 A at an ambient 25°C.
•Inrush current resistance 30 A, 60 hZ, 1 cycle.
•Applicable load capacity 72 W, output voltage 34 V dc.

Additional Features of G3RV-SR500-D AC110 SSR – Solid State Relay.

•Operate time 6 ms max.
•Release time 60 ms max.
•Output ON resistance 0.3 Ω max at 24 v dc.
•Leaked current 10 μA max at 24 V dc.
•Vibration resistance – malfunction 10 to 55 to 10 Hz double amplitude.
•Shock resistance 300 m/s².
•Ambient operating temperature -30°C to +55°C.
•Relay weight 38 g.
•IP 20
•Load category DC-12.
•Rated insulation voltage 240 V.

Suitable SSR – Solid State DIN Rails.

•Part number PFP-100N – 1 m DIN relay, Stock number 8278403.
•Part number PFP-50N – 0.5 m DIN relay, Stock number 8278400.

Suitable End Plate for the SSR –Solid State Relay.

•Part number PFP-M, stock number 8278419.

Suitable Spacer Plate for the SSR- Solid State Relay.

•Part number PFP-S, Stock number 8278412.

Standards

UL 508, E64562. CE.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
