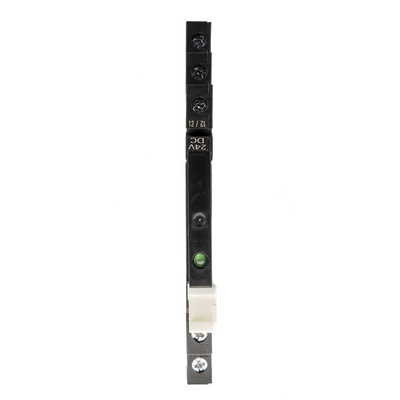

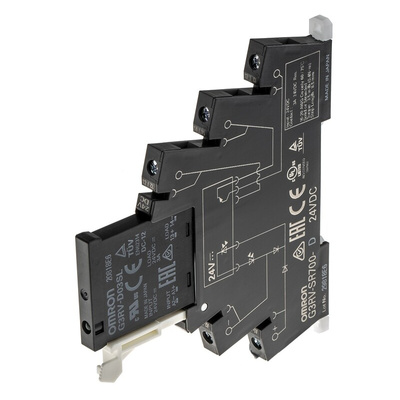

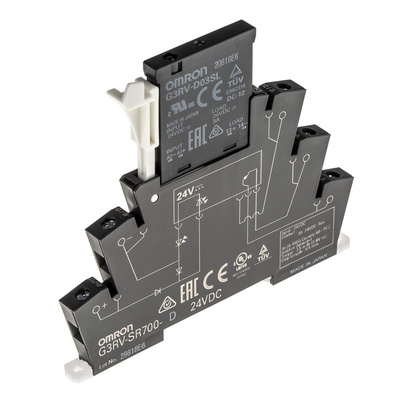

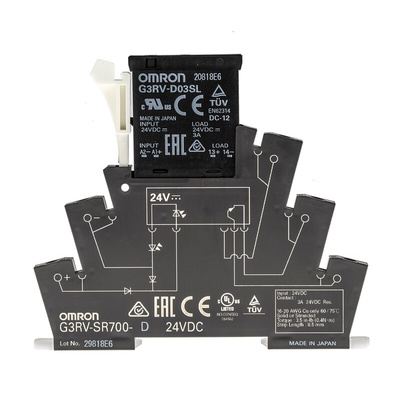

G3RV-SR700-D DC24, Omron G3RV-SR Series Solid State Interface Relay, 24 V dc Control, 3 A Load, DIN Rail Mount, Реле

G3RV-SR Slim I/O Solid State Relay

Omron G3RV-SR slim I/O solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G3RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

High frequency
High-speed opening and closing
Switching capacity up to 3 A (DC), and 2 A (AC).
LED operating status

G3RV-SR700-D DC24 – I/O Low Profile SSR - Solid State Relay 6.2 mm Wide.

This I/O SSR-Solid state relay has a lower profile up to 25% of other standard SSR allowing further downsizing of the control panel. An optimal slim design relay that includes high frequency and high speed opening and closing of the SSR –solid state relay.

Features and Benefits G3RV-SR700-D DC24 I/O Slim SSR – Solid State Relay.

•Screw terminal.
•60% Reduced wiring time.
•DC Applicable output load.
•Rated input voltage 24 V dc.
•Slim compact design.
•DC output – MOS FET.
•High frequency.
•High speed opening and closing.
•Easy wiring.

SSR – Solid State Relay Input Rating at ambient 25°C.

•Rated Current DC – 4.6 mA.
•Must operate voltage 21.6 V max.
•Must release voltage 1 V min.
•Input voltage ±10% of rated voltage.

SSR – Solid State Relay Output.

•Rated load voltage 5 to 24 V dc.
•Load voltage range 3 to 26.4 V dc.
•100 μA to 3 A at an ambient 25°C.
•Inrush current resistance 30 A, 60 hZ, 1 cycle.
•Applicable load capacity 72 W, output voltage 24 V dc.

Additional Features of G3RV-SR700-D DC24 SSR – Solid State Relay.

• 6 ms max.
•Release time 60 ms max.
•Output ON resistance 0.3 Ω max at 24 v dc.
•10 μA max at 24 V dc.
•Vibration resistance – malfunction 10 to 55 to 10 Hz double amplitude.
•Shock resistance 300 m/s².
•Ambient operating temperature -30°C to +55°C.
•Relay weight 38 g.
•IP 20
•DC-12.
•Rated insulation voltage 240 V.

Suitable SSR – Solid State DIN Rails.

•Part number PFP-100N – 1 m DIN relay, Stock number 8278403.
•Part number PFP-50N – 0.5 m DIN relay, Stock number 8278400.

Suitable End Plate for the SSR –Solid State Relay.

•Part number PFP-M, stock number 8278419.

Suitable Spacer Plate for the SSR- Solid State Relay.

•Part number PFP-S, Stock number 8278412.

Standards

UL 508, E64562. CE, TUV.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
